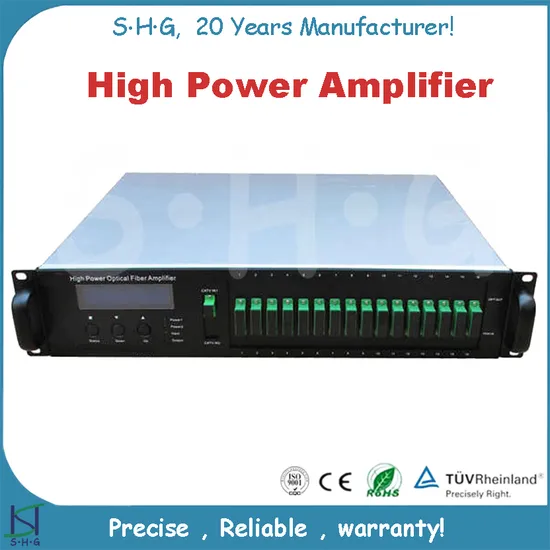

4/8/16/32/64 Channel CATV High Power Fiber Optical/Optic EDFA Amplifier

Product Description

SHG HA series fiber amplifier adopts multi-mode pumping laser and double-clad Erbium/ Ytterbium co-doped technology, which makes fiber amplifier output power up to 40dBm(10000mW), to fully drive the thousands of hundreds of user's requirement in large size FTTH distribution network.
Features
1. 2U, 19" standard container, easy to install.
2. Ultra-high power output, up to 5W of total output power, one can carry 2000~4000 PCS optical nodes.
3. Low noise figure, lower than 5.5dB in +5dBm input.
4. Very low CSO deterioration: <-70 dBc
5. 4, 8, 16, 32, 64 output port, each port power from 13 to 23dBm
6. Large LCD display screen
7. Perfect network management interface: Ethernet and RS-232 network interface.
8. Intelligent Temperature Control System: Adopts special temperature control chip, heat-dissipating and power consumption reduce by 30% compared with conventional products.
9. Adjustable output power
10. 1310nm, 1490nm, 1550nm WDM(Optional)can be integrated.
Block Diagram
Specification

Items		Units	Technical parameters
Operation wavelength		nm	1540~1565
Input optical power range		dBm	-3~+10
Total Output optical power		dBm	28	30	33	35		40
Output port No.			4, 8, 16, 32, 64
Each Port Power		dBm	13, 14, 15, 16, 17, 18,19,20,21,22,23...
Noise figure (note 1)		dB	≤5.5			≤6.0
Output power stability		dB	≤±0.2
Return loss		dB	≥45
Pumping leakage power	Input	dBm	≤-30
	Output	dBm	≤-45
Polarization related gain		dB	≤0.3
Polarization membrane dispersion (PMD)		ps	≤0.5
Optical connector type			SC/APC or LC/APC
Power voltage		V	AC110~265(50~60Hz) or DC48V
Power consumption		W	≤55				≤75
Operation temperature range		ºC	-5~+50
Max. Operation relative humidity		%	Max. 85%, non-condensation
Storage temperature range		ºC	-40~+80
Outer dimension		mm	483×440×88
Net weight		Kg	8.45

Other Optical Transmission Equipment Other Optic test instruments Certificates
ISO9001:2008, CE, RoHS, REACH Our Advantages Why Choose us
FAQ FAQ
Q1: Are your company factory?
SHG: Yes! SHG is a group company, we have 4 factories, and Lin'an Longshine handling import and export for SHG group. Q2: Do you company offer OEM service?
SHG: Yes! OEM available, your logo & reference on products & package available.
Q3. What's your products lead time?
SHG: Some are on stock, lead time is 2 days; some are not on stock, usually it take 7-25 days after order confirmed (deposit received). Q4. Where is your nearest sea-port and airport? SHG: The nearest sea-port is Ningbo, Shanghai.
The nearest airport is Shanghai, but we also can delivery from other airport like Shenzhen. But will need add some additional local transportation charge.
Q5. What's your Payment Term? SHG: We perfer T/T. 30% T/T in advance as deposit, balance upon copy of B/L or prior shipment depend on delivery method.
Q6. Quality and Reputation: SHG: SHG highly care of our reputation, we offer quality product, earn trust from our worldwide customers. Only customers are satisfied with our products and services, then we will feel happy & honor. We care of long term partner relatioship, not one-time business. We aim to cooperation, friendship.

---
