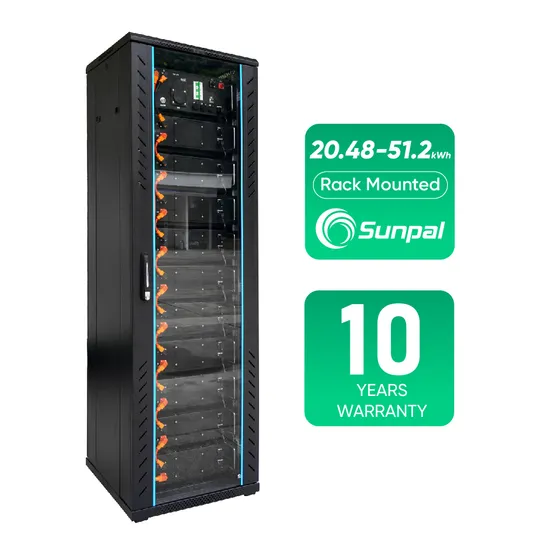

Sunpal Storage Lithium Lifepo4 Battery 20Kwh 30Kwh 100Ah Rechargeable Solar Battery Pack

Product Description

Product Description

Main Features * Quick installation, standard of 19-inch embedded designed module is comfortable for installationand maintenance. Cathode material is made from LiFePO4 with safety performance and long cycle life, The module has less self-discharge, up to 6 months without charging it on shelf, no memory effect, excellent performance of shallow charge and discharge. *
* It has protection functions including over-discharge, over-charge, over-current and over-high or low temperature. The system can automatically manage charge and discharge state and balance current and voltage of each cell.
*The whole module is non-toxic, non-polluting and environmentally friendly.
* Multiple battery modules can be in parallel for expanding capacity and power.Support USB upgrade,wifi upgrade (optional), remote upgrade(Compatible with Deye inverter).
* Working temperature range is from -20°C to 55°C, with excellent discharge performance and cycle life.
Specifications

MODEL	SP-R-HV20	SP-R-HV25	SP-R-HV30	SP-R-HV35	SP-R-HV40	SP-R-HV45	SP-R-HV50
Cell chemistry	LifePO4
Module energy(kWh)	5.12
Module nominal volatage(V)	51.2
Module capacity(AH)	100
Cell model/ Configuration	3.2V100AH /64S1P	3.2V100AH /80S1P	3.2V100AH /96S1P	3.2V100AH /112S1P	3.2V100AH /128S1P	3.2V100AH /144S1P	3.2V100AH /160S1P
System nominal voltage(V)	204.8	256	307.2	358.4	409.6	460.8	512
System energy(kWh)	20.48	25.6	30.72	35.84	40.96	46.08	51.2
Charge/Discharge Current(A)	50A-100A
Working temperature	Charge: 0°C~55°C ; Discharge: -20°C~55°C
Communication port	CAN2.0/RS485/WIFI
Humidity	5~85%RH Humidity
Altitude	≤2000m
IP rating of enclosure	IP20
Dimension(W*D*H,mm)	538*492*791	538*492*941	538*492*1091	538*492*1241	538*492*1391	538*492*1541	538*492*1691
Weight approximate(kg)	195	240	285	330	375	420	465
Installation location	Rack Mounting
Storage temperature(°C)	0°C~35°C
Recommend depth of discharge	90%
Cycle life	25±2°C, 0.5C/0.5C, EOL70% 6000

Compatiable Inverters Certifications Company Profile Our Factory Sunpal Solar is a professional battery manufacturer since 2002, Sunpal manufactures and sells environmentally friendly Sealed Lead Acid (SLA) and Lithium batteries. Sunpal introduces and develops advanced technology, and adopts the world's most advanced production equipment and testing measures to ensure long product life, high energy density, and environmental protection features such as cadmium-free, leading the domestic counterparts.
Sunpal company is a high-tech enterprise headquartered in Shushan District, Hefei, China, and has three manufacturing bases in Jiangsu, Hengyang(China) and Vietnam. It has approximately 2,000 employees, including two professors who have experience over 40 years in batteries research, and over 50 research engineers. Sunpal also has invested strongly in domestic and foreign institutions and scientific research institutions to overcome difficulties in battery technology. The performance of the batteries independently researched and developed by Sunpal has met and exceeded international standards, and a variety of technologies have been granted national and international patents.
