Customized New Longqiang Export Standard Double-Walled Stainless Steel Insulated Tank

Product Description

Product Description

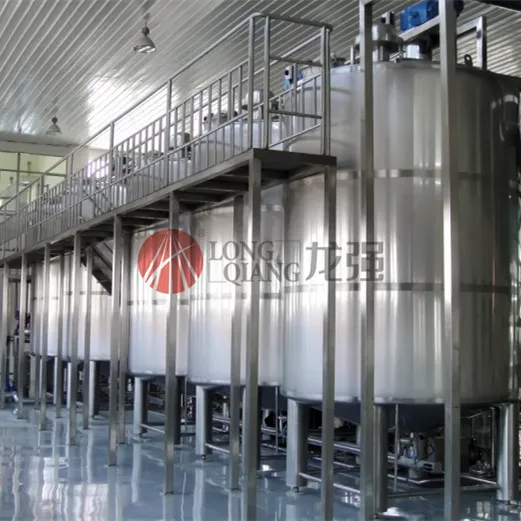

Three-layer Vertical Blending Cooling And Heating Tanks Series
The three-layer vertical blending cooling and heating tanks series is composed of inside and outside the interlayer, vertical stirrer and so on. The tank is open- cylindrical stainless steel container, which can withstand acid and pressure, heat preservation and cooling, and is beautiful and practical. It is suitable for dairy processing, pasture, food, pharmaceutical, cold drink and chemical industry, etc. it can as the necessary equipment for heating, cooling, heat preservation or storage of slurry
Applicable range
Used as liquid storage tank, liquid composing tank, temporary storage tank and water storage tank etc.
Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Detailed description
Structure characteristics
Adopt inner tank and outer packing, and fill the insulation material structure in themiddle.
Materials are all sanitary stainless steel.
Humanized structure design and easy to operate.
Transition area of interior wall on tank adopts arc for transition to ensure no deadcorner of sanitation.
Configuration of tank
Quick open manhole.
Various models of CIP cleaning ball.
Fly and insect resistant sanitary breathing cover.
Adjustable triangular bracket.
Dismountable product inlet assembly
Thermometer (According to customer
requirements).
Ladder (According to customer requirements).
Paddle blender
Level meter and controller
(According to customer requirements).
Eddy-proof board.
Technical Parameter

Working volume(L)	Dimension of tank (D×H)(mm)	Total height(mm)	Diameter of inlet & outlet (mm)	Insulation(mm)	Motor power (kw)	Blending speed (r/min)
500	840×1000	2750	60	38	0.55	Common rotation speed 35,43,60 stepless speed Reduce or Dual-speed Reducer are Also available
800	950×1220	3000	60	38	0.55
900	1010×1220	3000	60	38	0.55
1000	1060×1220	3150	60	51	0.75
1500	1160×1500	3350	60	51	0.75
2000	1340×1500	3410	60	51	1.1
3000	1410×2000	4000	60	51	1.5
4000	1620×2000	4250	60	51	1.5
5000	1810×2000	4300	60	51	2.2
6000	1980×2000	4550	60	51	2.2
7000	1930×2440	5000	60	51	2.2
8000	2060×2440	5000	60	51	3
9000	2180×2440	5050	60	51	3
10000	2300×2440	5050	60	51	3
12000	2270×3000	5600	60	51	4
15000	2530×3000	5700	60	51	4
20000	2640×3660	6400	60	51	5.5
