Product Details
Product Description
Product Description

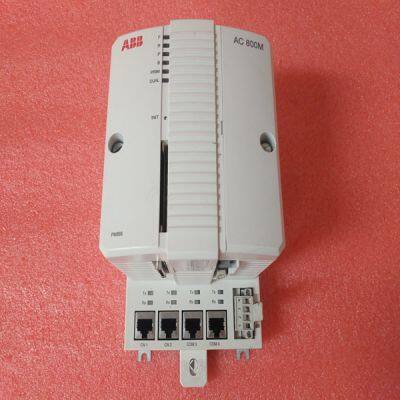

Brand:ABB
Type:PM866K01 3BSE050198R1
Origin:the Swiss
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Pass-through Formatted Block for Function 15 (9959) Block 9959: Pass-Through Formatted Block for Function 15 When the module receives a function code 15 in Pass-Through mode, the module writes the data using block ID 9959 for multiple-bit data. First the bit mask clears the bits to be updated. This is accomplished in Studio 5000 by ANDing the inverted mask with the existing data. Next, the new data ANDed with the mask is ORed with the existing data. This protects the other bits in the INT registers from being affected. This function can only be used if the Block Transfer Size parameter is set to 120 or 240 words. Block 9959: Request from Module to Processor Offset Description 0 Read Block ID: 9959 1 Write Block ID: 9959 2 Length in words 3 Data address 4 to 28 Modbus Data 29 to 53 Bit mask to use with the data set. Each bit to be considered with the data set has a value of 1 in the mask. Bits to ignore in the data set has a value of 0 in the mask. 54 to (n-1) Spare Where n = 60, 120, or 240 depending on the Block Transfer Size parameter. The ladder logic is responsible for parsing and copying the received message and performing the proper control operation as expected by the Master device. The processor must then respond to the Pass-Through control block with a write block with the following format. Block 9959: Response from Processor to Module Offset Description 0 Write Block ID: 9959 1 to (n-1) Spare This informs the module that the command has been processed and can be cleared from the Pass-Through queue.
8.4.17 Pass-through Formatted Block for Function 23 (9961) Block 9961: Pass-Through Formatted Block for Function 23 Block 9961: Request from Module to Processor Offset Description 0 Read Block ID: 9961 1 Write Block ID: 9961 2 Number of word registers in Modbus data set 3 Starting address for Modbus data set 4 to (n+1) Data (Length in words = n - 2) Where n = 60, 120, or 240 depending on the Block Transfer Size parameter. The ladder logic is responsible for parsing and copying the received message and performing the proper control operation as expected by the Master device. The processor must then respond to the pass-through control block with an output image write block with the following format. Block 9961: Response from Processor to Module Offset Description 0 Write Block ID: 9961 1 to n Spare (Length in words = n - 2) This informs the module that the command has been processed and can be cleared from the Pass-Through queue.
>>
