US$0.18
10,000-49,999 Watts
US$0.17
50,000-299,999 Watts
US$0.16
300,000-1,499,999 Watts
Basic Info.
Certification
ISO, CE, TUV
Material
Monocrystalline Silicon
Certificate
CE / CB / TUV
Cell Type
Mono Perc Half Cell
Keyword
Longi Monocrystalline Solar Panel
Operate Temperature
-40~+85
Frame
Anodized Aluminium Alloy
OEM Order
Provide Custom Products
Maximum System Voltage
DC1500V
Junction Box
IP68 Rated, 3 Diodes
Transport Package
Carton with Pallet
Specification
2278*1134*35mm
Production Capacity
200000000watts Per Month
Product Description
Product Description
Tiger Neo Series
| Module model | LR4-60HPH 365-385M | LR4-72HPH 445-465M | LR5-54HPH 405-425M | LR5-72HPH 540-560M |
| Power Range | 365-385W | 445-465W | 405-425W | 540-560W |
| No. of Cells | 120 cells | 144 cells | 108 cells | 144 cells |
| Dimension | 1755X1038X35mm | 2094x1038x35mm | 1722x1134x30mm | 2278x1134x35mm |
| Weight | 19.5kg | 24.3kg | 20.8kg | 27.5kg |
| Modules per box | 30pcs | 30pcs | 36pcs | 31pcs |
| Modules per 40' container | 780pcs | 660pcs | 936pcs | 620pcs |
Hi-MO 4m
LR4-60HPH 365~385M
Power Range: 365-385WNo. of Cells: 120 cells
Dimension: 1755×1038×35 mm
Weight: 19.5 kg
Modules per box: 30pcs
Modules per 40' container: 780pcs
Hi-MO 4mLR4-72HPH 445~465M
Power Range: 445-465WNo. of Cells: 144 cells
Dimension: 2094x1038x35 mm
Weight: 24.3 kg
Modules per box: 30pcs
Modules per 40' container: 660pcsHi-MO 5m

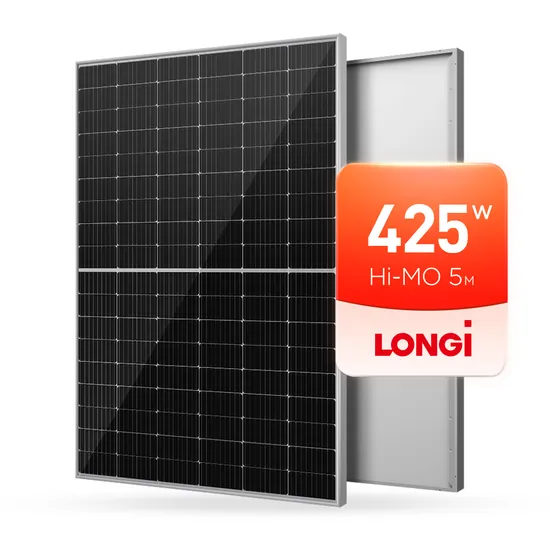

LR5-54HPH 405~425M
Power Range: 405-425WNo. of Cells: 108 cells
Dimension: 1722×1134×30 mm
Weight: 20.8 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs Hi-MO 5m
LR5-72HPH 540~560M
Power Range: 540-560WNo. of Cells: 144 cells
Dimension: 2278×1134×35 mm mm
Weight: 27.5 kg
Modules per box: 31pcs
Modules per 40' container: 620pcsProduct Packaging
Tier 1 Solar Module
Project Case
>>
