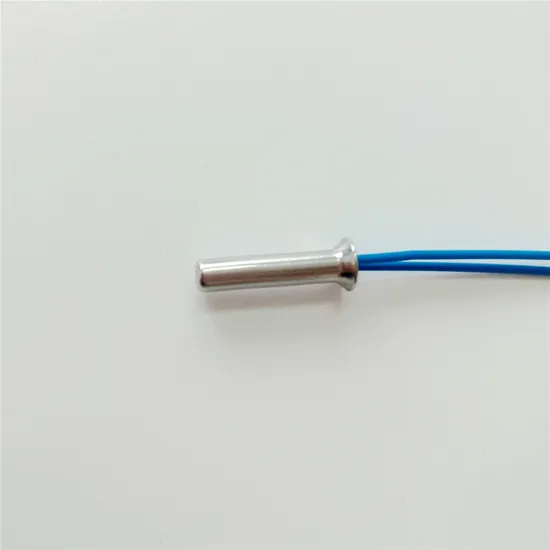

Focusens SUS304 SUS316 Food Grade House Thermistors Ntc 100K 200K Ohm 1-5 Percentage Precision Max. Sensor Temperature 300degc

Product Description

Product Description
MFP series temperature sensor using the NTC resistance element, according to the different temperature environment or application, through the mature technology, fabricate into a variety of specifications of the sensor, customers can use directly without fabricating.
Technical Data:

Item	Temperature
Sensing Element	NTC Thermistor various R and B value on request
Temperature range	-30°C to +150°C
Response time	Water (0.4m/s) T0.63 ≤ 30s
Dissipation Factor	≥ 2.5mW/°C
Long-term stability	Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C)
Dielectric Strength	1500VAC
Insulation Resistance	≥100MΩ 500VDC

Other options:
1.Standard value: R25ºC: 10K B25/85ºC: 3435, different NTC R-T curve available
2.Different probe and wire size and color available.
3.Different size SUS housings available for sensor mounting protection.
4.Different type of connector is available.
Typical Applications:
1. Toilet seat heating
2. Water heater
3. Floor heating and Cogeneration systems

Features:
1. Moisture-proof
2. Fast response
3. Small time constant
