PUL14 FINCM CNC Automatic Channel Steel Strip Steel Shearing Marking And Punching Machine 80mm*43mm*5mm-140mm*60mm*8mm

Product Description

Product Description
PUL14 FINCM CNC Automatic Channel Steel Strip Steel Shearing Marking And Punching Machine 80mm*43mm*5mm-140mm*60mm*8mm

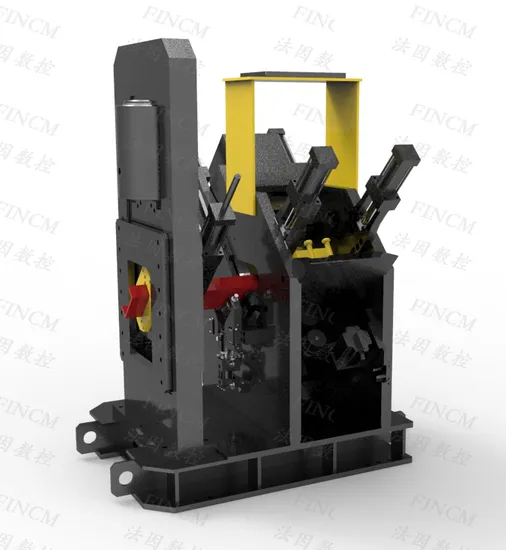

It is mainly used for customers to manufacture strip steel and channel steel components, and complete typing, punching and fixed length cutting on strip steel and channel steel. Simple operation and high production efficiency.

Machine Advantage: The main unit consists of marking unit, punching unit and shearing unit. The workpiece is clamped by pneumatic clamp and moves quickly for positioning. The workpiece is driven by servo motor and driven by gear rack, with high positioning accuracy. The transverse material path is composed of four chains with shifting blocks and frame body, and the chain is driven by motor through reducer. The discharge chute is composed of chute body and cylinder. After the finished workpiece comes out of the main machine part, it is rotated and sent out of the production line. The machine has three CNC axes: the movement and positioning of the feeding trolley and the up and down movement and positioning of the punching unit die. The computer programming is easy, and can display the workpiece graphics and the coordinate size of the hole position, which is convenient for inspection. The upper computer management is adopted, which greatly facilitates the storage and call of the program; Graphic display; Fault diagnosis and remote communication. Cooling mode of hydraulic system: water cooling.

Technical specification :

Processing channel steel range	80x43x5~140x60x8
Maximum punching diameter	26mm
Punching nominal force	950kN
Nominal typing force	630kN
Cut off the nominal force	1000kN
Maximum workpiece length	9m
Number of punching dies	3
Number of punching rows on each side	Arbitrary
Number of print header groups	4 groups
Number of prefixes in each group	10 pcs
Header size	14*10*19mm
Cut off method	Single edge cutting
Number of CNC axes	3-axis
total power	33KW
Machine dimensions	27*9*2.2m

Working temperature: 0~ 40 degree
Power: Three phase four wire system
AC Voltage: 380V
Fluctuation of voltage: ± 10%
Frequency: 50 Hz
Main outsourcing components list :

NO	Name	Brand	Country
	AC servo motor	Delta/Schneide	Taiwan, China / France
	PLC	Yokogawa/ Schneide	Japan / France
	Input module	Yokogawa/ Schneide	Japan / France
	output module	Yokogawa/ Schneide	Japan / France
	Positioning module	Yokogawa/ Schneide	Japan / France
	Contactor	Siemens	Germany
	Motor switch	Siemens	Germany
	Supporting chain	Kabel	Germany
	Electromagnetic unloading valve	ATOS	Italy
	Relief valve	ATOS	Italy
	Electro hydraulic directional valve	JUSTMARK	Taiwan, China
	Drag Plate	AirTAC	Taiwan, China
	Air valve	AirTAC	Taiwan, China
	Cylinder	SMC	Japan
	Duplex	SMC	Japan

Note: The above is our fixed supplier. It's subject to be replaced by same quality components of other brand if the above supplier can't supply the components in case of any special matter.
