Universal Cylinder Grinder Machine M1450/Cylindrical Grinding Machine

Product Description

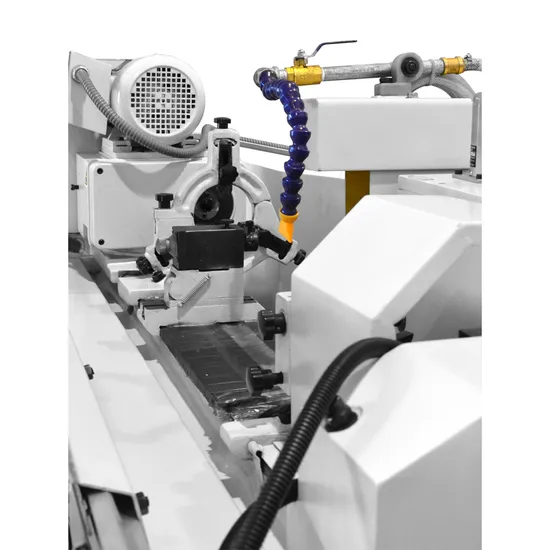

Detailed Photos

Product Description
Via linear hydraulic feed
Solid workpiece spindle head and wide, rigid grinding spindle support with inside grinder ensure the best possible results under varying operating conditions
grinding spindle supported on both sides in an adjustable 3-segment bushing a dwell time can be set at the end of the table travel
The sturdy spindle head swivels 30° to the left and the right
Pawl-feed in combination with a zero-stop allows repeated feed without checking the feed scale
including inside grinding feature and automatic infeed
hydraulic or manual rapid feed with return
infinitely variable feed

MODEL		Unit	M1450
Distance between centers		mm	1500
Center height		mm	270
Dia Ground(O.D)		mm	25-500
Dia Ground(I.D)		mm	30-200
Max length ground(O.D)		mm	2000
Max length ground(I.D)		mm	320
Max weight work piece		Kg	1000
Work head Swiveling angle			+90 degree
Center taper		MT	6
Spindle speed		r/min	25-224 steplesss
Wheel spindle speed		r/min	1330/665
Wheel head rapid travel		Mm	100
Max travel		Mm	370
Wheel head swivel angle			-30 degree
Hand feed per rev			Rough:4 fine:0.5
Hand feed per gra			Rough:0.02 Fine:0.0025
Wheel size		Mm	500× 75× 305
Internal grinding spindle speed		R/min	10000
Internal grinding wheel size		mm	max: 175× 32× 32 min: 30× 25× 10
Table hand feed per rev		Mm	5
Max swiveling angle of able	Clockwise		2°(2000,3000)
	Anticlockwise		5°(2000)
Longitudinal speed range of table		m/min	0.1-3
Center taper		Mt	6
Quill travel		mm	70
Wheel head motor power		Kw	15
Internal head motor power		kw	1.5
Work head motor power		Kw	4
Gross weight		T	10
Packing dimension		cm	560*2090*2100 (1500)

Standard accessories:
Wheel flange
Balancing arbor
Wheel exactor
Coolant tank
Working lamp
Tool box and tools
Wheel dresser stand
Standard grinding wheel
Leveling wedge and bolt
Standard electro magnetic chuck
Optional accessories:
Wheel balancing stand-->USD250.00
Magnetic separator-->USD500.00
Close type steady rest-->USD420
End wheel dresser-->USD200
Radial wheel dresser-->USD150
