Basic Info.
Protective Characteristics
Open Relay
Action Principle
Electronic Type
Type
Electric Parameter Relay
Operational Current
10 to 100 AMPS
Operational Voltage
240V or 440V
Dielectric Strength
1500VAC
Transport Package
20PCS in One Box
Trademark
Chnanma or as customer request
Origin
Zhejiang China (Mainland)
Production Capacity
50000PCS/Month
Packaging & Delivery
Package Size
18.50cm * 10.50cm * 12.70cm
Package Gross Weight
0.840kg
Product Description

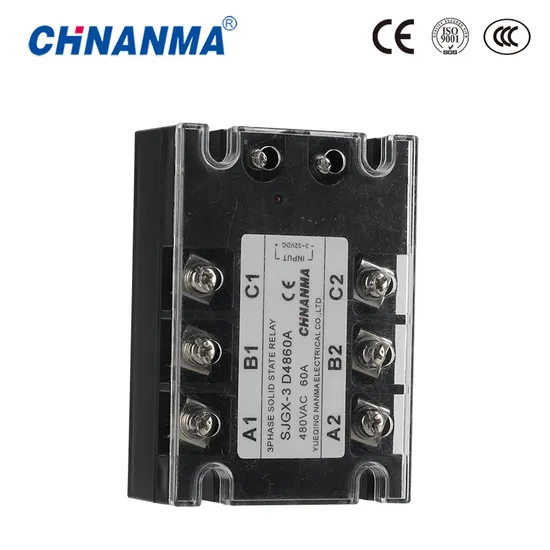

Product Description Solid state relay(SSR) is an electronic switch, which contains no moving parts. Its load current is conducted by one or more semiconductors. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR.Solid state relays are widely used in testing instruments, displays, power plant, household appliances and automobiles etc.
Detailed Photos
Product Parameters Specification
Model | HHG1-1/032F-22 2A (SSR-DA) |
| HHG1-1/032F-38 2A (SSR-DA) |
| HHG1-0/032F-20 2A (SSR-DD) |
| Control Voltage | 032:3-32VDC |
| Control Current | 6-35mA |
| Make-on Voltage | 3VDC |
| Break-off Voltage | 1VDC |
| Reverse Voltage | 32VDC |
| Load Voltage | AC:22:30-240VAC,38:40-440VAC |
| DC:20:12-200VDC |
| Load Current | 2A |
| Instant Voltage | AC:22:600VAC;38:900VAC |
| DC:20:220VDC |
| Voltage Drop | AC:<1.6VAC,DC:<1.2VDC |
| On-off Time | AC:≤10mS,DC:≤5mS |
| Leakage Current | AC:≤10mA, DC:≤5mA |
| Dielectric Strength | ≥1500VAC |
| Insulation Resistance | 500MΩ,500VDC |
| Ambient Temperature | minus30 to 80ºC |
| Indicate Methods | / |
Description of solid state relay
| Control Voltage | 90-250VAC |
| Control Current | 5-30mA |
| Turn-on Voltage | 90VAC |
| Turn-off Voltage | 10VAC |
| Load Voltage | 22:30-240VAC,38:40-440VAC |
| Load Current | 10A,15A,20A,25A,30A,40A,60A,80A |
| Transient Voltage | 22:600VAC,38:900VAC |
| On-state Voltage Drop | <1.6VAC |
| ON-OFF Time | ≤10mS |
| Off-state Leakage Current | ≤10mA |
| Dielectrics Voltage-resistance | ≥2500VAC |
| Insulation Resistance | 500MΩ 500VDC testing |
| Ambient temperature | -30~80? |
| Dimensions | 63L*45W*26H |
| Indicated Methods | LED |
| Installation | Screw fixing |
Company Profile
Certifications
Our Advantages Customer's questions
Q1:How about the delivery time?
It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.
Q2:What quality you can offer to us?
We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.
Q3:Can you give me samples to test?
Yes.
Q4:What's you MOQ?
MOQ 100PCS, mixed order acceptable, welcome trial order.
Q5:What's the delivery term?
Both EXW and FOB Ningbo are acceptable.
After Sales Service Q6:What's the payment term?
We could start our discussion about payment term from second order on.
Q7:What's the shipment way?
Answer:Express:DHL, UPS, FedEx, TNT and SF express.
Forwarder:Air shipment or sea shipment.
6.More information of our products, please do feel free to contact us.
Reply will be available within 24 hours. Thanks!
>>
