Simple Thermoforming Machine Vacuum Moulding Machine for Toy Casings Plastic Car Cushion Refrigerator Liners PP ABS PE PVC TPE

Product Description

Product Description
Parameters.
Parameters of small thick sheet vacuum forming machine

NO.	Technical specification	Technical Parameters
1	Maximum heating area	800mm×600mm(Size can be customized)
2	Molding thickness	1-5mm
3	Molding height	300mm
4	Total power of the upper furnace	30KW
5	Total power of equipment	35KW(subject to actual, normal use of power: 40% - 60%)
6	vacuum volume	100m3/h
7	Total gas supply (external)	0.6-0.8Mpa
8	power supply	380V/50HZ
9	Total weight of equipment (reference)	500kg
10	Machine Size	Length 2000mmX1500mmX1800mm
11	Applicable materials	Thermoplastic materials such as ABS, PP, PE, PS, PMMA, etc.

Product Description
Vacuum forming machine for small thick sheets
Small thick sheet blister machine machine features:
1.PLC control, touch screen operation, easy to operate, Chinese and English interface, can also be customized according to requirements of other languages.
2.The electric furnace is driven by servo motor and heated by infrared heat pipe, which is automatically opened when the furnace is advanced and heated, and all of them are extinguished when it is returned, which greatly saves energy consumption.
3.Mold lifting is pneumatic, rack and pinion synchronous structure, stable and fast.
4.Material fixture is pneumatic, window integration adjustment, greatly reducing the time to change the mold.
5.Equipped with vacuum pump and vacuum tank, the equipment can be produced at any time.
6.Cooling system is equipped with 2 powerful fans.

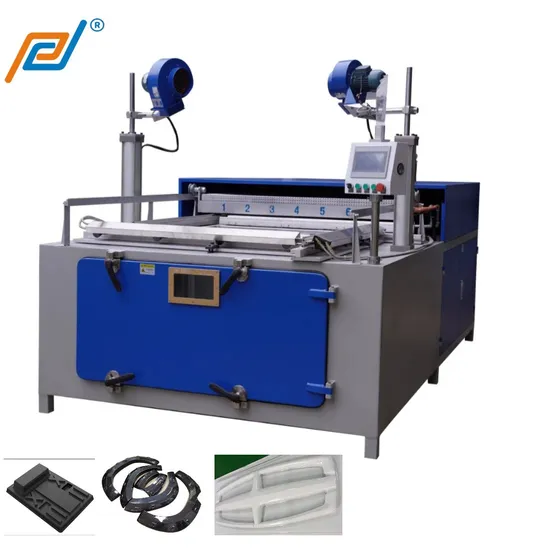

Detailed drawing of the machine
Use for below products:
This thick sheet vacuum forming machine is mainly used to produce automobile parts, including automobile floor mats, automobile wheel arches, automobile rain shields, automobile trunks, automobile bumpers, etc. It can also produce bathroom wall panels, bathtubs, refrigerator liners, etc. Products requiring thermoforming process.
PUDI MACHINERY
Dongguan Pudi Machinery Equipment Co., Ltd. is a professional blister machinery series equipment manufacturer focusing on R&D, design, manufacturing, sales and service. Pudi Company was established in 2005. After nearly 20 years of research, development and production of vacuum forming machine equipment, it has continuously pursued innovation. The professionals in our company are committed to providing customers with excellent solutions and helping them achieve innovation and efficient production in various fields.
Patent and certificate protection
Pudi Machinery Equipment Co., Ltd. has demonstrated its profound technical foundation and professional strength in the field of vacuum forming machines. The company has 16 patent copyrights and is in a leading position in the industry's innovation capabilities. Pudi Machinery Equipment Co., Ltd . has not only made remarkable achievements in technology research and development, but also obtained relevant professional certificates. These certifications further prove the high standards and quality assurance of the company's products. Logistics and transportation guarantee
OUR EXPERTISE ,YOUR ADVANTANGE
1.Professional Technical Team :20 years of R&D and production experience,with rich experience in vacuum moulding technology
2.Non-standard customised service : Provide one-stop service to provide customers with excellent complete vacuum forming solutions .
3.Quality assurance and reliability : All mechanical parts are produced independently by CNC machining centre
4.Worry free after-sales service : Integration of installation ,commissioning and training services
Pudi service standard
Pre-sales service
1. According to the customer's products to provide customers with a reasonable program, plastic absorbing machine and peripheral equipment investment ratio.
2. Provide the amount of water, electricity and gas needed for the production workshop.
3. Provide reasonable workshop planning program.
4.Provide the mold manufacturers and material manufacturers for plastic injection molding.
The sale of services
1. In order to improve the subsequent production efficiency of the customer, the customer's existing molds or re-development of the mold planning proposals.
2. After the completion of the production of equipment, responsible for the installation, commissioning, training. And assist the operator to produce the ideal products.
3. Provide good production suggestions to customers who have just entered the plastic absorbing industry, and reduce customers' production costs.
After-sales service
1. One year warranty for the whole equipment, and the parts can be exchanged for new ones within one year (except for man-made damages and wearing parts).
2. Lifetime maintenance of the equipment, after the warranty period only charge the cost of materials, such as the need for door-to-door service only charge a reasonable travel expenses.
3. For all the customers who have purchased Pudi's equipment, we will make after-sale visits from time to time.
We can customise any model, if you are interested in our machines, please feel free to contact me!

---
