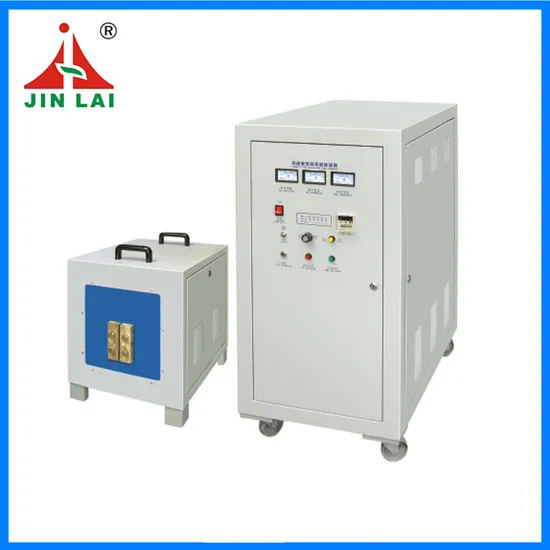

Superaudio Frequency Round Bar Bolt Nut Induction Hot Forging Equipment

Product Description

5% off Monthly Deals Superaudio Frequency Round Bar Bolt Nut Induction Hot Forging Equipment
Main Feature
1. IGBT inversion technology reduce operating cost.
2. The absolute load merit rate design, can work continuously for 24 hours.
3. The digital phase locked realizes following frequency automatically.
4. Design in modules It s installed facility and use conveniently.
5. The perfect protection function, insuring the reliability and easily maintaining of the equipments.
6. The technique of converting frequency by resonance promotes efficiency of whole equipment by over 95% efficiently.
7. Economically, and environmental protection, it can replace of the gas/ coal/ electronic tube induction heating machine.
Technical Parameters

Model	JLC-30	JLC-50	JLC-60	JLC-80
Input power desire	3 phase 380V 50/60HZ
Oscillate power max	30KW	50KW	60KW	80KW
Max input current	48A	63A	90A	135A
DC current	60A	80A	120A	150A
Oscillate frequency	10-30KHZ	10-30KHZ	10-30KHZ	10-30KHZ
Timing	1M-99.99M 1S-99.99S 0.01S-99.99S	1M-99.99M 1S-99.99S 0.01S-99.99S	1M-99.99M 1S-99.99S 0.01S-99.99S	1M-99.99M 1S-99.99S 0.01S-99.99S
Cooling water desire	0.2Mpa	0.3Mpa	0.3Mpa	0.4Mpa
Duty cycle	100% 40°C
Net weight	60kg/30kg	65kg/45kg	70kg/45kg	80kg/55kg

The whole set including

Item	Name of machine or parts	Specification	Amount
1	JLC-30/50/60/80KW Generator	-	1 pcs
2	JLC-30/50/60/80KW Transformer	-	1 pcs
2	Foot Fedal	3 core	1 pcs
3	Induction Coils	-	2 sets
4	Connect Cable	-	1 set
5	Instruction Manual	-	1 pcs
6	Products Catalogue	-	2 pcs

Applications
1.End Heating
Induction forging refers to the use of an induction heater to pre-heat metals prior to deformation using a press or hammer. Typically metals are heated to between 1,100 and 1,200 °C (2,010 and 2,190 °F) to increase their malleability and aid flow in the forging die.Induction End heating is widely used for bolts making.
2.Quenching
Hardening uses heat and rapid cooling (quenching) to increase the hardness, strength and/or durability of steel. Heating steel or iron above their upper critical temperatures, modifies the crystal structure of the metal to a form called Austenite. With this atomic arrangement the carbon can then freely migrate to a new location.
Hardening result depends upon a complex interaction of process parameters such as coil and quench design, material analysis, component geometry, heating frequency, heating power and quenching cycles.
Package
