| US$1,299.00-1,799.00 | 1 Set (MOQ) |
| TECHNICAL DATA | STANDARD FEATURES | ||||||||||
| Performance: | Cylinder | AIRTAC /(MC-06FA Model) | |||||||||
| Throughput Speed | 20M/Minute | Electromagnetic Valve | AIRTAC /(MC-06FA Model) | ||||||||
| Case Size (Outside Dimensions) | L:150-unlimited W:150-500mm H:150-500mm | Motor | CPG | ||||||||
| Sensor | OMRON/(MC-06FA Model) | ||||||||||
| Operation | Air Flitter Valve | AIRTAC/(MC-06FA Model) | |||||||||
| fold flaps | Manual | Tape Cutter | SKD11(Japan) | ||||||||
| adjust size | Manual (MC-05FA model "AUTO") | Motor Protector | S c h n e i d e r | ||||||||
| Top & Bottom Seal | Electric Switch | S c h n e i d e r | |||||||||
| Tape | 48-72mm | ||||||||||
| Machine Head | 3inch (2inch optional) | ||||||||||
| Service Requirements | Certification | CE | |||||||||
| Air Supply | NON (MC-06FA Model 6Bar ) | Machine Warranty | 1 year | ||||||||
| Power | 400W | ||||||||||
| Voltage | 110/220V, 1ph, 50/60Hz | ||||||||||
| Machine Data | Optional | ||||||||||
| Weight | 120KG | Top & Bottom seal | Hot glue | ||||||||
| Dimensions | 1020*900*1350mm(L*W*H) | Safety door system | with safety sensor | ||||||||
| Outfeed Pass Height | 600 mm +/- 150 mm | Output conveyor | custom made conveyor | ||||||||

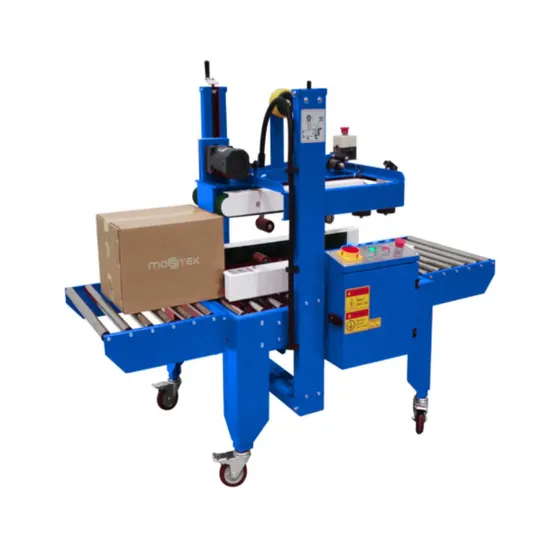

| MC-05Pro FEATURE |
| Side drive + Top Drive system 1. Two drive systems make the machine more durable 2. Both are suitable for heavy and high boxes | Independent Electric Box with main power switch, pause, power indicator button, let machine work more visible | Safe & Intelligent Function 1. Two E-Stop buttons on machine 2. S chneider relays protect the motor from burning |
| Packaing Line: 1. Carton sealing machine + flexible Conveyor 2.Carton sealing & strapping All in one machine |
