Tecniwell Jet-Grouting Cement Bentonite Water Grout Mixing Machine Grout Mixing Plant

US$24,500.00
1 Set
US$23,500.00
2+ Sets

Basic Info.

Model NO.
CSM40
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
50m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000
Condition
New
Color
Customer Request
Application
Foundation, Tunnel, Subway
Mixer
3 M3
Agitator
1.5 M3
Dimension
Same as 20gp Container
Pump Capacity
40-50m3/H
Pump Model
Customized
Pump Quantity
1,2, 3 or More
Additive
1,2,3 as Per Client′s Requirement
Customization
Acceptable
Transport Package
as 20FT Container
Specification
same as 20ft container
Trademark
SDDOM
Origin
China
HS Code
84749000
Production Capacity
10sets/Month

Product Description

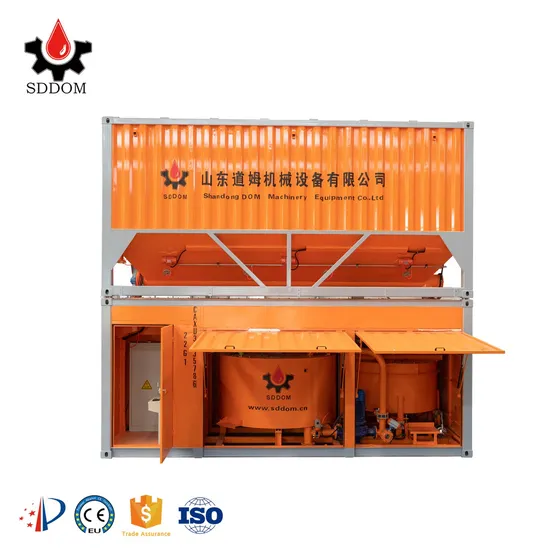

CE Tecniwell Jet-Grouting Cement bentonite Water Grout Mixing Machine grout mixing plant
Features Grout Mixing Plant is special designed for cement and water mixed project. Its advantage is continuous mixing.
Full auto control system with SIEMENS PLC, main electric parts are SIEMENTS/Schneid brand. Container design can be shipped as container to save shipping fees. Container cement silo can be on top of container to supply cement.
Customized design is completelty accepted as per client's requirement, we have already customized for clients from different regions including Singapore, Australia, Malaysia, Hongkong, Israel and so on, especially for the offshore engineering project in Korea, Jalan and Myanmar.
Main parts
Name Qty
Mixing system 1 set
Temporary agitator system 1 set
Centrifugal mortar pump 1 set
Water tank 1 set
Additive system 1 set
Pneumatic system 1 set
Control system 1 set
Container frame 1 set

Main Technical data
Name Grout mixing plant
Model CSM40
Material Carbon steel
(Thickness mixing tank-8mm, Agitator tank-6mm)
Capacity 40m3/h
Total Power 48KW
Max.Pumping height 25m
Max. Pumping distance 250m
Grout pump Horizontal centrifugal pump,
pressure 0.25Mpa
Transport As one 20 GP container
Size 6058*2438*2591mm
Weight 6.8 ton

Shipment
