Muscle Powder /Milk Powder / Whey Protein Mixer /Ribbon Blender

Product Description

Paddle Mixer,Non-Gravity Open-door mixer
Non-Gravity Twin Shaft Paddle Mixer for Flavorings
Veterinary powder Vet milk powder Ribbon mixer
Tea protein Powder NON-gravity Paddle mixer
Muscle milk whey protein Mixer /ribbon blender

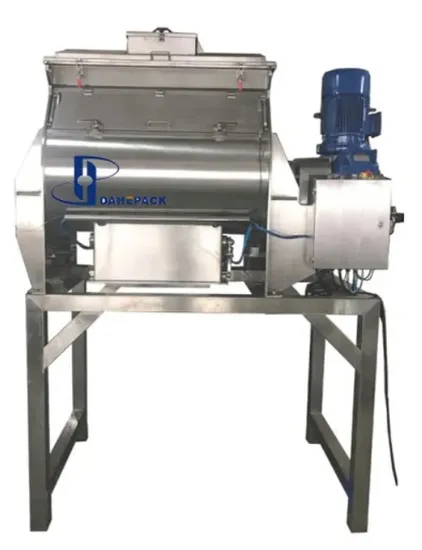

non-gravity open-door mixer is also called pulling type paddle mixer. On the basis of long-term practice in the field of mixer, this series machine overcomes the drawback of horizontal mixer to clean up inconveniently. The gear reducer and mixer rotor are direct transmission, The two mixing shaft move out from mixer tank that powered through gear box.It's more convenient to cleaning equipment by workers.higher reliability and longer service life. It is widely applied in mixing powder and powder, granule and granule, granule and powder and a bit liquid. It is used for food, chemical, pesticide, feeding stuff and battery etc
Feature
1Cleaning convenient:The two mixing shaft move out from mixer tank that from electric control box button operation and powered through gear box ,the advantage is more convenient to cleaning equipment by workers.
2 High active :Rotate reversely and throw materials to different angles,mixing time 1-3min
3 High uniformity:Compact design and rotated shafts be filled with hopper, mixing
4 Low residue:Only 2-5mm gap between shafts and wall, open-type discharging hole
5 Zero leakage: Patent design and ensure the rotating axle & discharging hole w/o leakage
6 Full clean:Full weld and polishing process for mixing hopper, w/o any fastening piece like screw,nut.
7 Elegant appearance:The whole machine is made by 100% stainless steel to make its profile elegant except gear reducer, direct mechanism and bearing seatuniformity up to 99%
Main Technical Data:

Model no.	Effective Volume(L)	Loading coefficient	Power(KW)	Rotation speed(r/min)	Dimension (mm)	Weight(kg)
TDWK-150	150	0.6-0.8	4	53	2900 *960 *1200	680
TDWK-300	300	0.6-0.8	4	53	3240X1040X1450	980
TDWK-500	500	0.6-0.8	7.5	53	3400X1150X1500	1600
TDWK-1000	1000	0.6-0.8	11	45	3600X1380X1690	2800
TDWK-1500	1500	0.6-0.8	15	45	3900X1560X1840	3800
TDWK-2000	2000	0.6-0.8	18.5	39	4200X1800x1950	5000

---
