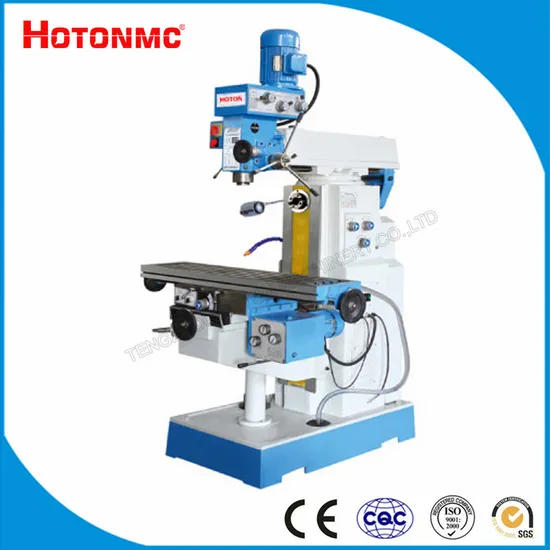

Horizontal Vertical Knee Type Drilling Milling Machine (ZX6350D)

Product Description

UNIVERSAL DRILLING MILLING MACHINE:
compound sliding table with scale and adjustable stops for coordinate drilling and light milling work
quiet operation with oil-bath lubricated gears for long tool life and durability
the milling machine's high-quality spindle bearing can withstand higher loads for the long term
Gear drive for vertical milling / horizontal milling,
Workbench feed X / Y to automatic, Z to manual,
Milling head can be rotated 45 degrees,
Spark quenching machine.
Application:
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
Product main technical Specifications:
SPECIFICATIONS:

SPECIFICATIONS	UNITS	ZX6350D
Table size	mm	1120x280
T=slot number/width/pitch	mm	5/14/50
Longitudinal travel	mm	640
Cross travel	mm	240
Vertical travel	mm	430
Vertical milling capacity	mm	32
Face milling capacity	mm	120
Drilling capacity	mm	50
Longitudinal feeds range	mm/min	15.1-266.5(6rank)
Cross feeds range	mm/min	15.1-266.5(6rank)
Vertical milling spindle travel	mm	120
Spindle nose to table surface distance	mm	100-530
Travel of movable arm	mm	360
Vertical milling spindle taper	MT	MT4
Horizontal milling spindle taper	MT	MT4
Vertical milling spindle speeds	r/min	115-1750(8rank)
Horizontal milling spindle speeds	r/min	32-1320(12rank)
Vertical milling motor	KW	1.5/0.85
Main motor	KW	2.0/2.4
Overall dimensions(Lx W x H)	mm	1400x1300x2100
Net weight	KG	1300

Contact Us:

Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 hotonmachinery.en.made-in-china.com

Company Profile:

Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.

The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale.

Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills.

---
