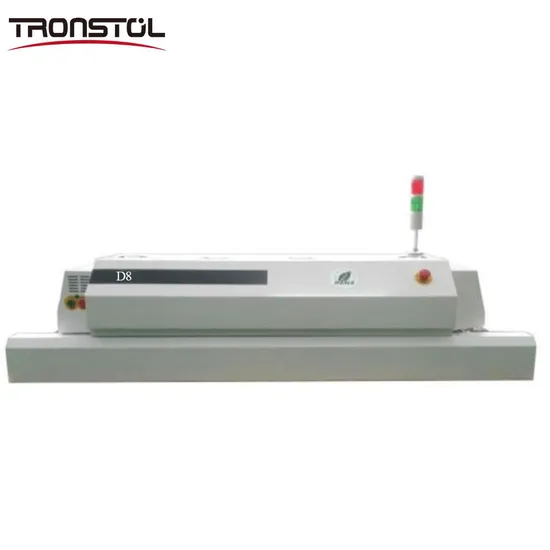

D8 Lead Free SMD Hot Air SMT Reflow Soldering Oven for PCB Welding

Product Description

Product Description
Features:
1.D8 reflow oven worked with hot wind to solder PCB, support most normal components, LED and kinds of IC.
2. Crawler-type structure matched with eight heating zones can make inside temperature more accurate and well-proportioned, just need 15-20min to reach the working temperature.
3.Using AC motor to drive the conveyor belt, chain type transmission way. Speed adjustment is controlled by automatic electronic analog switch, which sensitivity no more than 1 degree,control accuracy ±10mm/min.
4.8 heating zonesFirst:Fast preheat zone,Second/Third:Drying zones,Fourth:Soldering zone,Fifth/Sixth/Seventh/Eighth:Bottom side heat zones,(Each zones adapts independent heating/cooling control ways,cooling zone belongs to strong wind refrigerating system.)
Specification:

Specification
Model	D8
Components Max Height (CM)	5.5
Conveyor Width(CM)	30
Max Speed of Conveyor (CM)	120
Peak Power(KW)	12
Working Power(KW)	5
Input Voltage(V)	380/220
Heating zones	8
External Dimensions	Machine:210*70*70CM
Net Weight	230KGS
Gross weight	220kg
