Pnmd-B Series Crusher Blades Sharpener Knife Grinder Electric Knife Sharpening Machine

Product Description

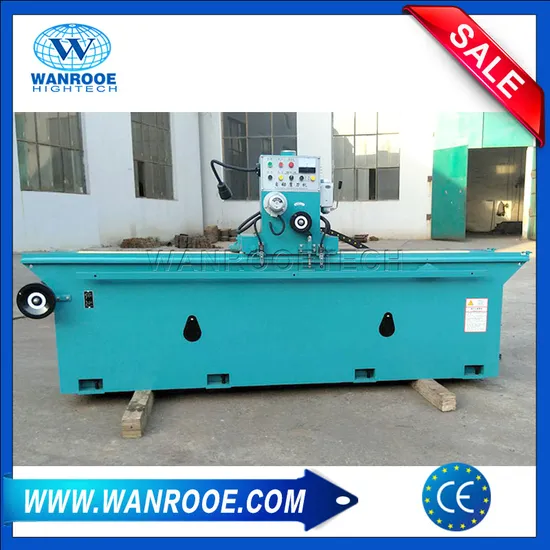

PNMD-B Series Crusher Blades Sharpener Knife Grinder Electric Knife Sharpening Machine
Application:
Knife sharpeners are mainly used in: sharpening centers, forestry industry, printing plants, paper and plastics, book printing centers, medium-sized knife sharpening rooms and other institutional enterprise users.
It is suitable for the processing of various straight-edged tools, mainly crusher blades, wood rotary cutter sharpeners, etc.

Description:
The machine body is made of double-layer welding of 10mm high-quality plates; the grinding head motor is a standard Y series motor, the grinding head grinding wheel can be fed manually or automatically, and the rising and falling are in the form of a ball screw; the sliding table is driven by a rack and pinion; The work table is a new S-type electromagnetic chuck, which can rotate 0-360 degrees; the grinding head box is equipped with a centralized refueling device, which can centrally lubricate the driving part of the grinding head. The guide rail of this model is of ordinary wear-resistant steel belt type, which can be easily replaced. The model can also choose linear guide device or numerical control device.

Structure of the Sharpener:
The machine body is made of high-quality 10mm-23mm plates and double-layer welding to avoid deformation of the machine body during long-term operation of the equipment and affect the accuracy of sharpening.

Machine Body:
The integral casting box can also be used, which is more stable! This requires special customization!

Guide Rail Introduction:
First use a gantry grinder to find the plane, and then install ordinary guide rails or linear guide rails on both sides of the box.

Ordinary Rail:
Average precision, suitable for straight-edged knives without special requirements for knives, such as crusher blades, wood rotary cutter blades, etc.! No dust cover required.

High Precision Linear Square Rail:
Suitable for customers with high precision and special requirements for blades, such as printing, paper making and other industries, as well as knife mills, etc.! The linear guide rail is installed with a dust cover to prevent dust from entering the linear guide rail, and an electronic timing and quantitative refueling device is installed;

Linear Guide Lubrication System-Electronic Fuel Pump:
Lubricate regularly and quantitatively to avoid dry friction of high-precision linear guides and prolong service life; lubricate the upper and lower lead screws of the grinding head.

Ordinary Rail Lubrication System-manual Refueling Pump:
Manual quantitative refueling pump, every time you start up, you need to refuel! Avoid dry friction! Lubricate ordinary guide rails and die head upper and lower screw guides.

Grinding Head Holder:
Grinding head supports are divided into ordinary steel plate welding type and steel plate welding type, and the price is cheap.

Sharpening Feed Control System:
The sharpening feed control system can freely adjust the feed amount according to different blade materials and blade accuracy.

Walking Positioning System:
This switch can control the walking distance of the sharpener, and the length of the blade can limit the walking stroke and improve the efficiency of sharpening.

Sharpening Machine Control System:
The ordinary control system of the sharpener is simple, stable and reliable! Increase the weight of the body, precisely process each part, the guide rail has high precision, stable operation, high straightness of the sharpening, and high efficiency of the large-power grinding head motor.

Walking Wire and Water Pipe Hub:
Convenient maintenance; beautiful and clean; protect cables and cooling water pipes, reduce wear of pipes and cables, and protect cables and cooling waterpipes.
Product Details:
Technical Parameters

Model	Sharpening Blades Length(mm)	Moving Motor power(W)	Sharpening Motor Power(KW)	Working Angle(degree)
PNMD-700	0-700	500W	1.1	0-90
PNMD-1000	0-1000	500W	1.1	0-90
PNMD-1200	0-1200	500W	2.2	0-90
PNMD-1400	0-1400	500W	2.2	0-90

FAQ
1, Are you a trading company or manufacturer?
A: WANROOETECH is a Factory-Outlet Platform for excellent manufacturers only!
2, As the shipping period, will take a long time, how can you make sure the machine won't be broken?
A: Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.

3, I am a foreign customer, if the product's part is broken, how can get help from you?
A: Some standard configurations you can buy in your local market, such as SIEMENS Motor.

4, Could I know the process of manufacturing production after placing the order?
A: Our sales will share the video after testing, or take online video when testing the machine. Of course, also welcome you to our factory to see machine testing.

5, Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings according to the quantity.

6, Where is your factory located? How can I visit there?
A: Our company is located in Zhangjiagang City, China, really glad to invite you to come to our office to have a face to face meeting before we build to order.

7, We are new buyers, do not know how to buy? Can we use our own freight forwarding?
A: We are a very experienced company, we will provide you with the guidance of security. We have long-term freight forwarders partners to ensure the delivery of goods to various countries for our customers. You can use your freight forwarding.
Our Service
1. One year guarantee for the whole machine
2. 24 hours technical support
3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food, and the hotel is to the customer's account.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well

---
