Product Description
Product Description

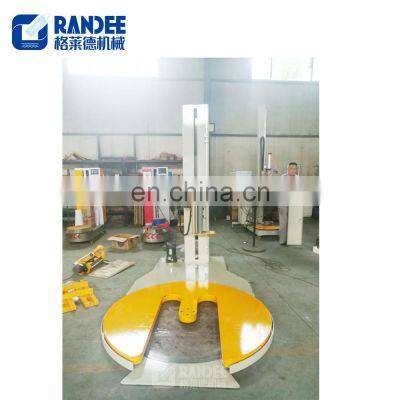

M type automatic pallet stretch wrapper / wrapping machineProduct Description1.Machine introductionStretch wrapping machines are used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported & storaged to protect them from tip, spill or from being damaged. Additionally , wrapped loads can easily be separated and identified. Stretch pallet wrapper is widely used in chemical industry electronic industry building materials home appliances paper making foodstuff & drink etc.2.Material usage:Machine is using a standard type of stretch film packaging material for creating a hard to tear,resistance,waterproof cover over the loads. The film is recyclable. Specification: width:500mm, thickness:20-25microns, length:1500meters, weight:max:16kgstretchable,one side sticky,transparent or colored.3.Function of the machine:1).Control System PLC control Photo-eye auto-height sensing pallet height Separate top ,bottom & up-down Wrap Counter optionsOverwrap time is up to create an overwrap Reinforce wrap times is set to better secure 2 loads placed on top of each otherFilm Tension Control adjustment on the panel Separate start, pause and emergency stop buttonsPower indicatorManual carriage up/down Variable Turntable Speed Carriage up/down speed control Manual/automatic exchangeable2).Turntable 1650mm Diameter Structural steel plate85mm Height floor to top of turntable3).Turntable drive 0-12rpm variable turntable speed by frequency changerPosition turntable alignment Soft start 4).Film carriagePowered pre-stretch system up to 250% to min film consumption Film delivery variable speed by separate DC Drive MotorElectronic film tension control adjustment on panelFilm dancer-bar with variable speed output 5).Film carriage DriveHeavy duty double-chain carriage lift, calm and safetyFilm carriage variable speed by frequency changerMachine show Load rampWrapped productsFilm show 4.Main technical parameterModel TP1650F-LWrapping size(L*W)(500-1200)mm*(500-1200)mmPacking heightL type:(500-2000)mmH type:(500-2400)mmY type:(500-higher than 2400)mmPacking efficiency20-40 loads/hourTurntable speed0-12rpmTurntable diameterDiameter:1650mm height:85mmTurntable loading(max)2000kgUp-down frameDouble-chain,Up-down speed variableFilm carriagePre-stretchControl systemPLCMachine weight(max)700kgMachine size2650mm*1650mm*2400mmElectricsSingle-phase 220V/50HzPowerTurntable:0.75kw,film carriage:0.3kw,up-down:0.4kwCompany InformationProject casesOur exhibitionWorkshop deatilsOur ServicesFAQQ1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: Are you a trading company or a manufactory?A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q3: Do you have technical support after we purchased your machines?A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q4: If you buy our machines, can you offer us wear-out spare pats?A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
>>
