Extreme Pressure Lubricating Oil Oxidation Tester ASTM D2893

Product Details

Product Description

Product Description

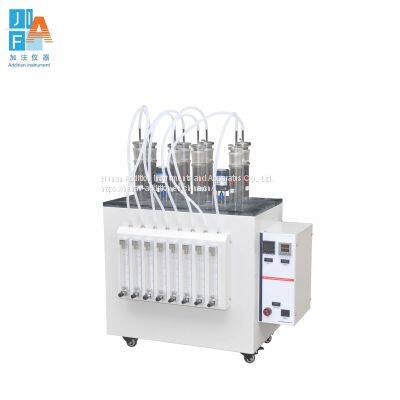

Extreme Pressure Lubricating Oil Oxidation Tester ASTM D2893
Product Model: JF0123
Product Introduction
This instrument is manufactured according to the ASTM D2893 standard, and is suitable for the determination of extreme pressure lubricating oil (such as gear oil). The method of use is as follows: at a certain temperature, the sample is passed into dry air at constant pressure, and the test is carried out for 312 hours, and the oxidation stability of the oil is expressed by measuring the increase value of the sample's kinematic viscosity at 100 °C and the change of the precipitation value.
Technical Parameter
1. Applicable standard: ASTM D2893 SH/T0123
2. Temperature control method: PID digital display temperature controller
3. Temperature control accuracy: 150±0.1℃
4. Heating method: electric heating tube heating, metal bath
5. Timing method: digital display timer
6. Power of the whole machine: 2.5KW
7. Working unit: 8 tubes
8. Flow control: precision flow meter
9. Instrument size: 630*710*930mm
10. Net weight: 52KG
Main feature
1. Metal bath heating, safe and environmentally friendly
2. Microcomputer temperature controller, digital display, accuracy ±0.1℃, PT100 sensor;
3. Precision flow meter controls the flow of gas;
4. 8 tests can be done at the same time;
5. Digital display working time;
6. The glass test tube meets the standard requirements;
7. High-power solid-state relay controls heating;
8. Over temperature alarm;
9. One-piece structure, the instrument base is equipped with pulleys, which is convenient to move.

---
