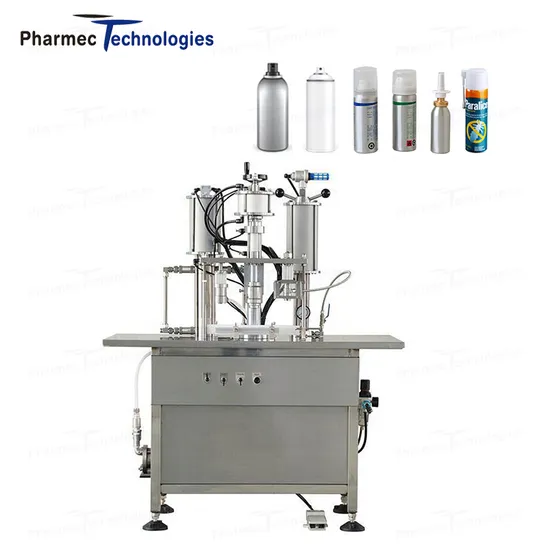

Pharmec Aerosol Packaging Machine Semi Automatic Aerosol Spray Can Filling Machine

Product Description

Pharmec Aerosol Packaging Machine Semi Automatic Aerosol Spray Can Filling Machine
Product Description Introduction
This machineis made of steel stainless, and driven by compressed air (Complete Pneumatic). This machine can fill liquid product into empty aerosol cans first, then crimp the valves, finally fill propellant gas into aerosol cans. The three modules are designed and integrated on one machine. Any one or two of them can be used alone. The liquid filling module has the function of automatically inhaling liquid, also can fill high viscosity medium,and we can adjust the volume of filling. (High viscosity medium such as paints, polyurethane foam sealant for black and white material). The valve crimping module has a high precision crimping mouth, large capacity air cylinder, even if low air pressure25-0.3MPa, can also have a high-quality crimping effect. Applicable to all kinds of 1 inch aerosol valves. Booster pump with large capacity two-way booster, can effectively remove the bubble from the liquid raw material.so filling fast, accurate. Thepropellant gas filling module is equipped a booster pump, mainly used for propellant such as (LPG/butane propane gas, Freon, DME/dimethyl ether and 134a, nitrogen, CO2, etc.), Main seals are imported, corrosion resistance. This machine is widely used in the fields: Sunscreen spray ,Nasal spray, Cosmetic Spray Evian ,Insecticide, Perfume spray, Air Freshener ,Shaving foam ,Spray paint, WD-40,etc. Product Parameters

Model	PT-QGB900
Usage	Aerosol filling
Product Description	liquid filling→ valve crimping →propellant gas filling
Application	Chemical, Food, Medical, Beverage
Automatic Grade	Semi-Automatic
Driven Type	Pneumatic (driven by compressed air)
Air supply pressure	0.6-1.0MPa (6-10bar)
Voltage for air compressor	220V/380V
Power for air compressor	4.0KW
Dimension (L*W*H)	L1170*W560*H1500mm
Weight	180KG
Diameter of supported cans	35-70mm
Height of supported cans	70-330mm
Valve type	1 inch (25.4mm)
Filling capacity	0-900ml (can be customized)
Productivity	800-1200 cans/hr
Air consumption	Max 0.6m3/min
Machine Material	Stainless Steel 304
