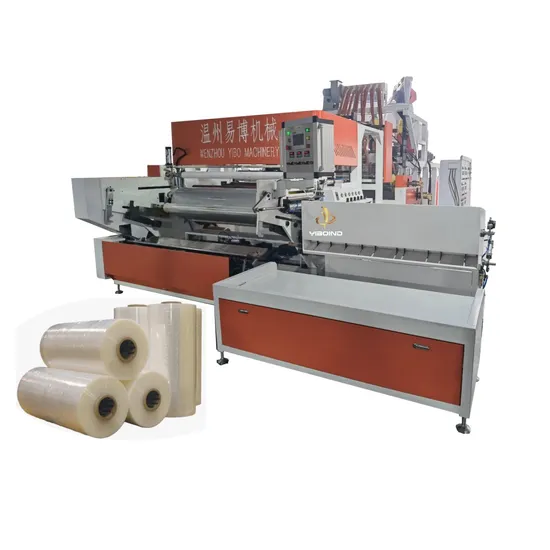

High Capacity 1500mm Co-Extrusion Cling Film LLDPE Stretch Film Machine

Product Description

Product Parameters
Detailed technical parameters of the whole machine:
PRODUCT:PE STRETCH FILM
PRODUCT WIDTH:100-1500mm
PRODUCT THICKNESS:0.012-0.05mm.
RAW MATERIAL:LLDPE
LAYER: ABC/ or ABCBA
RATIO:25%/50%/25%(adjustable)
Maximum extrusion capacity of the whole machine (max):150-320Kg/h
Mechanical design line speed(max):200m/min
POWER:380V,50HZ
WHOLE POWER:138KW
FILM ROLLER DIA:Φ300MM
Specification of paper tube core:INNER φ 76* ,OUT φ 96mm.*3
Machine dimensions (for reference only):L11000MM*W5000MM*H3800MM
Weight of the whole machine (for reference only):15T

Item name or item	Specification and model
1500mm new type automatic high speed three / five layer co extrusion winding machine	φ65/90/65
	Cooling roll enlarged
	Overhead film treatment
	International advanced Coupling
	Stainless steel automatic suction machine
	Automatic loading and unloading of gas expansion shaft
	Automatic loading and unloading device (automatic threading, unwinding, pumping and venting)
Double negative pressure vacuum box (in vacuum, heat and mist are removed to improve quality)
Automatic hydraulic screen changer (save network changing time and improve security)

Detailed Photos
Packaging & Shipping
Certifications
Client
FAQ
Packaging & Delivery1.Packaging Details: wooden pallet or plastic film 2.Delivery Detail: 30-60 days 3.Port: Ningbo port 1.Where is your factory LocatedOur Factory Located in Ruian City ,Zhejiang Province ,China .It is about 40minutes by plane from Shanghai, about 5 hours by train fromShanghai .We are pleasured to pick up you when you arrived .2. What should we charge for your engineer?Our engineer is available to go to your country to install the machine for you. Buyer have to bear the charges including round-trip tickets, cost of visa and accommodations .Salary for one engineer is 80USD per day. 3. How long is your machine's warranty period?All our machine have one year guarantee, starting from finished installation.

---
