Product Details
Product Description
Product Description

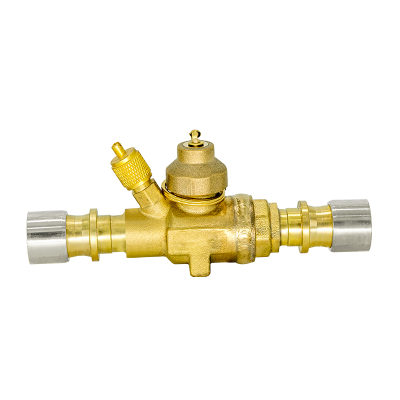

NEXCON braze free joint is quick and easy to install. A single sturdy connection can be safety completed in just a few seconds without any large industrial tools. The product is also equipped with a special removal tool and the pipe can be recycled fully after disassembly.
NEXCON braze free joint is the ideal choice for pipeline improvement, particularly where installation space in limited or open fire cannot be used. Our joint can easily solve such installation problems with quick, simple and versatile connections.
Nexcon braze free joint designed with elegance and beauty, can be used in commercial and domestic central air conditioning and refrigeration pipeline applications.
Material: Brass
Size:1/4"~1 5/8"
Technical Standard: Comply with ASTM B280 Standard refrigeration seamless copper pipe
Maximum Operating Pressure: 83.4 bar
Burst Pressure: Up to 399.5 bar
Approved Refrigerants: R1234yf, R1234ze, R125, R134a, R143a, R404A, R407A, R407C, R407F, R410a, R447A, R448A, R449A, R450A, R452A, R452B, R507, R513A, R718, R32 R290, R774(CO2)
Approved Oils: Mineral oil, POE, PVE, PAG
Approval: Tested by 20 different technical methods
Temperature Range: -35°C - 150°C(insulation excluded)
Copper pipe size range: 6.35 to 41.3mm (1/4" to 1 5/8")
External Leak Rate: <0.1 Oz of Helium per year at operating pressure range
Warranty: 30 years from date of installation
>>
