Water Well Drilling Rig Small Drilling Machine Trailer Type Drill Rig

Product Description

Product Description

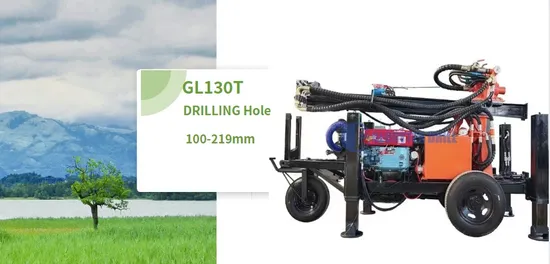

GL130T Drilling rig is suitable for industrial ,agricultural and geothermal water well.Fast feeding speed 23m/min.It has the advantages of fast footage, flexible movement and wide application. And it has simple structure, low cost and easy to operate.
Our Advantages
>>One person operation, save labor cost.
>>Trailer type,convenient to transport.
>>Economical,can be owned by common families.
>>simple operation,very easy to install.
Main technical parameters

Hole diameter(mm): 90--1200	Dimensions(mm)(L-W-H)Working conditions :4910×2020×6650
Hole depth(m): 250M	Transport status(mm): 6700×2020×2750
Run Of Rod(m): 3-6	Supporting Form: Mechanical Screw
Drill rod diameter(mm): φ60 φ73 φ89 φ95	Mask Up-Down: Hydraulic Drive
Drilling Technology: Normal and Reverse Circulation for both Mud and Air	Rig mass(Kg): 3400
Down-The-Hole hammers:Middle-High-Pressure Air	Chassis: Trailer with two wheels
Drill Head Inside Diameter :φ35 φ60 φ81 φ120	Power Unit: Diesel Engine
Drill Head Lifting Speed(m/s): 0.25 0.15	Power(kW): 40
Drill Head lifting Force(T): 15	Pump :LBN-20 Normal and Reverse circulation pump group
Drill Head Spin Speed: A(Forward:13-22-48,Reverse (r/min): 10-17-36	Flow(m3/h): 80
	Main Hoist Lifting Force(kN): 2.5T
B(Forward:48-84-184,Reverse (r/min): 37-65-142	Feed Thrust(kN): 2T

Detailed Photos
Construction Site


Related product

we can supply full set of drilling tools:drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit etc.
Drilling equipment:Air compresoor and Mud pump.
Drilling rig:Water well drilling rig/HDD drilling rig/Core drilling rig/RC drilling rig/Rock drilling rig etc.
Company Profile

Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and engineers that enable us to complete all the assigned projects successfully as per clients; requirements. Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.
FAQ

Q:Are you a trading company or a manufacturer?
A:We are a professional manufacturer.
The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.
Q:Can you supply related drilling tools?
A:Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit.
Q:How about quality assurance?
A:We provide a one-year quality guarantee for the main machine of the machine.

---
