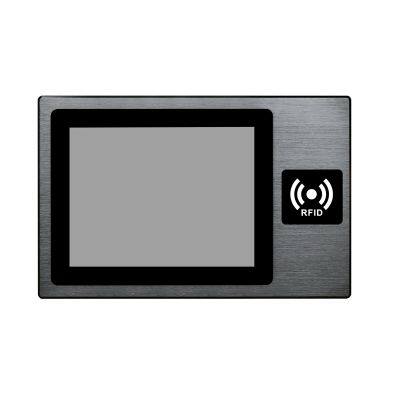

1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
4. High performance motherboard, 7x24 continuous operation.
5. Integrated with RFID.
6. Support wall mounting, embedded mounting, desk stand mouting etc.
Model: SC104
|
PC
|
CPU
| Intel® Celeron J1900, quad core, 2.0GHz, fanless
|
Chipset
| Intel ValleyView SSA-CUnit
|
Memory
| 2G DDR3 (4G, 8G optional)
|
Hard Drive Capacity
| 32G SSD
|
Hard Drive Optional
| SSD: 64G, 128GB, 256GB
|
HDD: 500GB, 1TB
|
Graphics
| CPU Integrated graphics HD Graphics and support 1080p HD photo quality
|
Audio
| Realtek ALC662, High Definition Audio (HD), Line in, Line out
|
Network
| 1xRealtek RTL 8111E Gigabit Ethernet controller
|
Wireless Network
| WIFI
|
I/O Interface
| 2xUSB 2.0 , 1xCOM RS232
|
1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
|
Operation System
| Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
|
LCD panel
|
Panel size
| 10.4"
|
Resolution
| 1024*768
|
Aspect ratio
| 4:3
|
Support Color
| 16.7M colors
|
Brightness (cd/m²)
| 300
|
Response time
| 5ms
|
Contrast ratio
| 800:1
|
View angle
| 80°/80°/80°/80° (R/L/U/D)
|
Touch panel
|
Touchscreen Type
| Project Capacitive Touch (10 points)
|
Touch Interface
| USB (RS232 optional)
|
Touch response time
| 2ms
|
Luminousness
| 90%
|
Surface Hardness
| 7H
|
Working life
| >50 million times
|
Touch options
| (5 wire resistive touch, IR touch optional)
|
Power Supply
|
External Power Supply
| AC 100-240V
|
Working voltage
| DC 12V
|
Power consumption
| ≤21.5W
|
Enclosure
|
Material
| Aluminum Alloy
|
Color
| Silver, Black, white, color can be customized
|
VESA mounting
| 75x75mm/100x100mm
|
IP grade
| Front panel IP65 waterproof
|
Operating Environment
|
Temperature Range
| Operating: -10 to 60°C, storage: -20 to 70°C
|
Relative humidity
| 5%~95% @ 40° C, non-condensing
|
Vibration
| 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
|
Packing Details
|
Net weight
| 4kg
|
Gross weight
| 5kg
|
Product Dimension
| 36.26x23.5x6.6cm
|
Packing size
| 49x45x20cm
|
Accessories
| Power adapter, embedded screws, user manual, warranty card
|
Other
|
Mounting (options)
| Embedded mounting screws
|
Wall mounting brackets (optional)
|
Desk stand holder (optional)
|
Warranty
| 1 year warranty
|
Certificate
| CE, FCC, RoHS
|
