HDPE Hmwhdpe Big Plastic Drum Barrel Tank Pallet Chair Container Making Blowing Production Line

Product Description

PXB120B

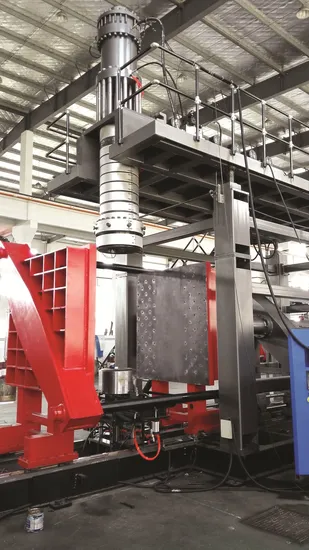

500L Blow Molding Machine
- Fixed open-closing and accumulator die head adopts oblique arm double drawbar synchronous clamping mechanism.
- Large space for mold, clamping stable, durable mode platen, mold clamping by oil cylinder pressure directly.
- Perfect Usage for LARGE TOY, WATER TANK, PALLET, etc.
- High efficiency mixing screw mechanism for HMWHDPE on extruder unit.
- Optional Inceasing Accumulator head capacity to MAX60L
Configuration List

PLC	MITSUBISHI	Japan
Touch Screen	WEINVIEW	Taiwan
D.C Driver	Eurotherm	U.K
Power Supply	MEAN WELL	Taiwan
Relay	OMRON	Japan
Hydraulic Valves	YUKEN	Japan
Hydraulic Pump	YUKEN	Japan
Contactors	LS(LG)	Korea
Solid relay	FOTEK	Japan
Breaker	LS(LG)	Korea
Temperature Control Module	MITSUBISHI	Japan
Oil Sealing	DZ	Taiwan
Oil Tube	LIEBAO	Taiwan
Transducer	GEFRAN	Italy
Proximity Switch	KINGTON	Taiwan
D.C Motor	XIMA	China
Air Valve	FESTO	Germany
Parison Controller	Moog	Japan
Servo Valve	Moog	Japan

Parameters:

Material		PE,PP,ABS...
Max container capacity	L	500
Output(dry cycle)	pc/hr	300
Machine dimension(L×W×H)	M	9.0×4.0×6.5
Machine weight	T	38
Clamping Unit
Clamping force	kn	1000-1500
Mold platen size(W×H)	mm	1600×1750
Platen opening stroke	mm	800-1800
Platen moving stroke	mm	1000
Max mold size(W×H)	mm	1400×2200
Mold thickness	mm	810-950
Power
Servo oil pump motor power	KW	35
Servo pump displacement	L/MIN	200
Blow pressure	MPA	1
Air consumption	M3/MIN	2
Cooling water pressure	mpa	0.5
Water consumption	L/min	100
Average energy consumption	KW	85-100
Extruder unit
Screw diameter	mm	120
Screw L/D ratio	L/D	25
HDPE Melting capacit for HDPE	kg/hr	300-380
Number of heating zone	zone	6
Screw heating power	kw	39
Screw fan power	KW	0.6
Extruder motor power	kw	90(110)
Die head
Number of heating zone for single die head	zone	6
Heating power for single die head	kw	39
Max die-pin diameter	mm	650
Accumulator capacity	L	25(30)
(HDPE) Accumulator weight(HDPE)	KG	25(30)

Delivery Time:
- No later than 90 days after receipt of the deposit
Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).
Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.
Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.
Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.

---
