US$3,900.00-4,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Frequency Characteristics
Power Frequency
Power Source
Voltage Stabilizer
Application Range
Industrial and Mining Enterprises
Input Voltage
380V+-20%/220V+-20%
Power Capacity
1kVA-2000kVA
Output Voltage Accuracy
1-5%(Can Be Adjusted)
Ambient Temperature
-10-+40c,
Insulation Resistance
5momega
Overload Capacity
1min 2000V
Wav Form Distortion
No Additional Waveform Distortion
Protective Function
Overvoltage,Overcurrent,Phase Shortage
Transport Package
Wood Packing
Production Capacity
500PCS/Month
Product Description

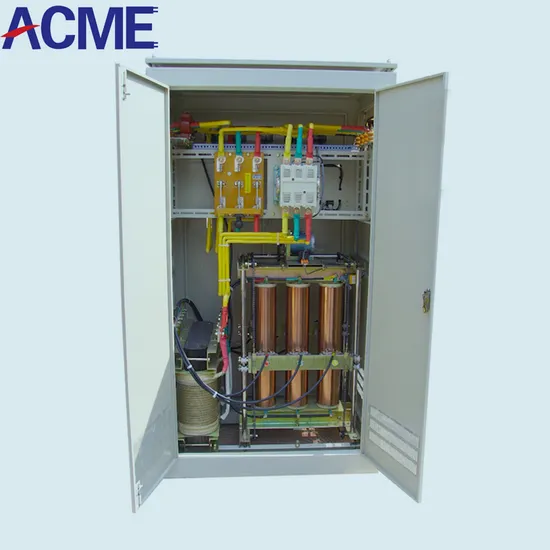

DBW/SBW Series Large Power and Full Automatic Compensated Voltage Stabilizers
Product Introduction
DBW/SBW series full automatic compensated voltage stabilizer is an energy-saving new product which is developed by our company and can absorb the advanced technology of international same product, with the functions of over/under-voltage protection, delay and error protection. It has advantages of small volume, light weight, large capacity, high efficiency, wide range, high precision, strong protection, without wave-form distortion, reliable operation and easy installation and etc.
Application
It is widely used in the fields of post office, store, elevator, hospital, school, publishing house and stock exchange where normal voltage is in need, and also can be used in the factories of large and middle-scale industrial and mining corporations, it is especially suitable for some important devices and supporting single machine.
Technical Specification
| Input Voltage | Three-phase four-line system Voltage:380±20%, phase voltage:220±20% Voltage: 380±30%or phase voltage:220±30% ( Can be selected. Please specify when ordering) |
| Output Voltage | Phase voltage:220V Single-phase:220V Line voltage:380V |
| Output Voltage accuracy | 1-5%(Can be adjusted) |
| Frequency: | 50HZ/60HZ |
| Efficiency | ≥98%(Power grade is over 50KVA) |
| Ambient Temperature | -10~+40ºC |
| Insulation Resistance | ≥5MΩ |
| Electric Intensity | The voltage for electrical strength and power frequency sinusoidal is 2000V
without breakdown and flicker over when it lasts 1minute. |
| Overload Capacity | It can last 1 minute at twice rated current. |
| Wave form Distortion | No additional waveform distortion |
| Protective Function | It offers the protection against over voltage, over current, phase shortage and phase-sequence(The single-phase offers no protection against the phase shortage and phase-sequence)and mechanical failure |
| Response Speed | ≤1s (When the external voltage change is 10%). |
Specifications and Model
| Model | Output Power(KVA) | Output current (A) | Weight (KG) | Product Size (cm) |
| SBW-20KVA | 20 | 30 | 280 | 80×62×135 |
| SBW-30KVA | 30 | 45 | 300 | 80×62×135 |
| SBW-50KVA | 50 | 76 | 340 | 80×62×135 |
| SBW-60KVA | 60 | 91 | 360 | 80×62×135 |
| SBW-100KVA | 100 | 152 | 410 | 85×62×150 |
| SBW-120KVA | 120 | 182 | 500 | 100×72×170 |
| SBW-150KVA | 150 | 227 | 535 | 100×72×170 |
| SBW-180KVA | 180 | 273 | 555 | 100×72×170 |
| SBW-200KVA | 200 | 303 | 615 | 100×72×170 |
| SBW-225KVA | 225 | 341 | 645 | 110×80×180 |
| SBW-250KVA | 250 | 379 | 680 | 110×80×180 |
| SBW-300KVA | 300 | 455 | 720 | 110×80×180 |
| SBW-320KVA | 320 | 486 | 740 | 110×80×180 |
| SBW-400KVA | 400 | 608 | 1080 | 120×85×190/2 |
| SBW-500KVA | 500 | 760 | 1470 | 100×80×200/2 |
| SBW-600KVA | 600 | 912 | 2170 | 100×80×200/2 |
| SBW-800KVA | 800 | 1216 | 2750 | 85×100×220/3 |
| SBW-1000KVA | 1000 | 1520 | 3450 | 85×100×220/3 |
| SBW-1200KVA | 1200 | 1818 | 4050 | 85×100×220/3 |
| SBW-1600KVA | 1600 | 2430 | 5500 | 110×110×220/4 |
| SBW-2000KVA | 2000 | 3040 | 7050 | 110×110×220/4 |
| DBW-20KVA | 20 | 91 | 278 | 70×50×135 |
| DBW-30KVA | 30 | 136 | 300 | 70×50×135 |
| DBW-40KVA | 40 | 182 | 320 | 70×50×135 |
| DBW-50KVA | 50 | 227 | 350 | 80×60×150 |
| DBW-60KVA | 60 | 273 | 370 | 80×60×150 |
| DBW-70KVA | 70 | 318 | 390 | 80×60×150 |
| DBW-80KVA | 80 | 364 | 420 | 80×60×150 |
| DBW-100KVA | 100 | 455 | 460 | 90×70×170 |
| DBW-120KVA | 120 | 545 | 490 | 90×70×170 |
| DBW-150KVA | 150 | 682 | 515 | 90×70×170 |
| DBW-180KVA | 180 | 818 | 560 | 100×80×190 |
| DBW-200KVA | 200 | 909 | 590 | 100×80×190 |
>>
