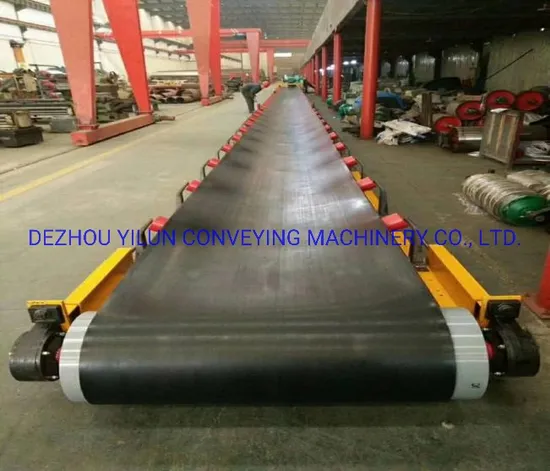

Factory Directly Supply 1000mm*30m Industrial Conveyor Equipment Fixed Tripped Belt Conveyor

Product Description

Factory Directly Supply 1000mm*30M Industrial Conveyor Equipment Fixed Tripped Belt Conveyor
Product Description Belt Conveyor is widely used in many fields like the following:
Belt conveyors can be widely used in coal, mining , metallurgical , ports and wharf, chemical, petroleum and mechanical industry, to transport various kinds of bulk materials and mass materials.
Bulk material such as coal,lime stone,iron ore and clean coal,etc,.
Standard Size: 650mm*20M,800mm*25M,1000mm*30M
Width:Max.2400mm
Length:Can be customized
Structure:Conveyor System
Application:Chemical Industry, Grain Transport, Mining Transport, Power Plant
Power:Can be customized
Speed:Can be customized
Color: Grey/Blue/Yellow/Black/Red Etc.
Product Parameters Specification of Fixed Belt Conveyor:
Size:500mm,650mm,800mm1000mm,1200mm,1400mm,1600mm,2000mm,2200mm, 2400mm width and length can be customized.
1. Large conveying capacity and longer conveying distance, up to 20km or longer
2. Can conveyor various kinds of bulk material and itemized goods with bulk density of 0.5~2.5t/m³
3. Can adopt combined conveying mode of convex curved segment,concave curved segment or straight segment.
4. According to different transportation request, it can be single used or multiple combined using, also can be used together with other equipment to organize a horizontal or declining conveying system.
5. It can be used between -25ºC~+60ºC working environment, temperature of conveying material under 80ºC with high adaptability.

Belt speed (m/s)	Belt Width(mm)
	500	650	800	1000	1200	1400	1600	1800	2000	2200	2400
	Conveying Capacity(T/H)
0.80	69	127	198	324
1.00	87	159	248	405	593	825
1.25	108	198	310	507	742	1032
1.6	139	254	397	649	951	1321
2.00	174	318	496	811	2288	1652	2186	2795	3470
2.50	217	397	620	1014	1486	2065	2733	3494	4338
3.15			871	1278	1872	2602	3444	4403	5466	6843	8289
4.00				1622	2377	3304	4373	5591	6941	8690	10526
4.50					2674	3718	4920	6291	7808	9776	11842

Our Advantages Advantages of Fixed Tripper Belt Conveyor:
1.)Professional design team, which can design according to the actual needs of customers;
2.)Optimize the plan by using different methods and combinations of different accessories;
3.)The cost can be saved by more than 15% through the optimized plan.
4.)For the spare parts, like the roller,bracket, pulleys, we all do by ourselves.
5.)We can control the quality and the delivery date and can confirm a best quality.
6.)we will install and adjust the belt conveyor at our workshop, so it is convenient for you installing at your site.
7.) we will provide the installing guide and drawing for you.
We provide the customer best after sale services, and we solve the problems any time


After Sales Service
WE guarantee that we will reply your inquiry/email ASAP.
WE guarantee that you will get higher-quality products from us.
WE guarantee that you will be served professionally and efficiently.
WE guarantee that the products will be delivered ASAP
WE guarantee that customized requirements will be accepted.

FAQ Why choose us?
1. 20 years experience.
2. Perfect workmanship. Always committed to research and development.
3. Ensure the products meet the quality standards.
4. Ensure the goods will be delivered on time.
5. We will reply you within 24 hours.
6. Provide warm and friendly service and after-sale service.
7. Guaranteed the good quality and best service, as you buy from local supplier.
8. Assorted designs, colors, styles, patterns and sizes are available.
9. Customized specifications are welcome.
FAQ:
Q:What's the delivery time?
A: Within 30 days after PO confirmed on both sides.
Q: What's the payment terms?
A: T/T 30% deposit 70% balance before shippment. Other payment can be negotiatable.
Q: Are you factory or trading company?
A: We're factory, and can do exporting ourselves and trading others if you want LCL.
Q:How's your capacity in your workshop?
A: We have 2 production lines in our workshop, can make 200 units conveyors within 1 month.

Packaging & Shipping
Customer visiting&Exhibitions
Company Profile Dezhou Yilun conveying Machinery Co.,Ltd was founded in 2005. It's registered capital is 11.68million CNY and It is private joint-stock enterprise. Our main products are cnoveyor roller,idler,frame, pulley,belt and belt conveyor system for TD75 ,DTII,DTIIA,CEMA ects. We has large lathes, numerical control, double pressing machine, double welding machine, double boring lathe, milling machine, sawing machine and so on. The products have gained various patents. We can produce more than one thousand rollers and ten pulleys per day.
We have the professional QC dept. to keep the good quality before the goods sent out.
According to differenct requirements of domestic and foreign customers' drawings, we can produce products complying to German DIN standard, Austrilian AS standard, Japanese JIS standard, American CEMA standard, South African SANS-SABS standard, Russian GOST standard, and French AFNOR standard, etc. The products are sold to Middle East,Africa ,Australia,Europe,Southeast Asia,Russia and some other countries and regions. We will Strengthen the inner management and improve our products' quality constantly.
We will offer the best products for customers from the beginning to the end.
