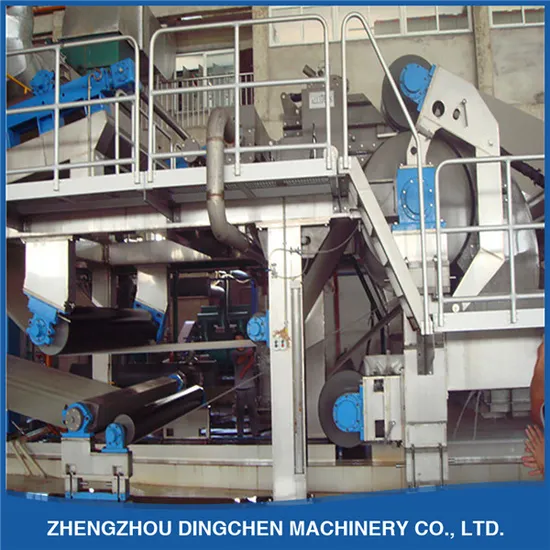

8-10t/D Full Automatic Toilet Paper Making Machine

Product Description

8-10t/D Full Automatic Toilet Paper Making Machine
Technical parameter
Raw material: waste paper, wood pulp, virgin pulp
Output paper: high and medium tissue paper, toilet paper
Net paper width: 2400mm
Output paper weight: 13-40g/m²
Working speed: 80-150m/min
Capacity: 8-10t/d
Rail gague: 3200mm
Drive way: AC inverter, adjustable speed, processing transmission
Main structure of the equipments
1. Cylinder part: One stainless steel plate type cylinder(φ 1500mm× 2850mm). One sealed pressure cylinder vat. One couch roll(φ 500mm× 2850mm), rubber hardness HS-38° C ± 2.
2. Dryer part: One dryer can(φ 2500mm× 2950mm), one touch roll(φ 550mm× 2850mm)pneumatic loading mechanism. Rubeer hardness HSD 90 ° C ± 2, dryer can equipped with one set of double air exhaust.
3. Reeling part: One roll cylinder(φ 1000mm× 2850mm), reel paper on sweat cylinder.
4. Rewinding and cutting part: Equipped with rewinding and perforating machine.
5. Driving&control part: AC frenquency convertor&adjustable speed, processing transmission.
Main equipment

NO.	Equipment	Quantity (set)
1	2400mm single cylinder single wire and single felt high speed toilet paper machine	1
2	Double-dryer breathing type exhaust hood	1
3	Axial-flow fan	1
4	Sealed pressure cylinder vat	1
5	15 type roots vacuum pump	1
6	Suction box	2
7	8m 3 High consistence hydrapuler	1
8	2m 2 High frequency vibrating screen	1
9	35m 3 bleacher	4
10	380 double disc refiner	2
11	φ700 thruster	6
12	CX0.9 centrifugal screen	1
13	606 desander 5 sets	1group
14	Two-phase flow pump-100	6
15	Two-phase flow pump-150	4
16	2400mm rewinding and perforating machine	1
17	Cutting machine	1
18	Pump cabinet	1
19	Frequency control cabinet	1
20	2 boiler	1

Contact & negotiate!!! John:8615638823327
we are a professional paper machine manufacturer,here,you can get the whole production line,we promise you good solution cause that is what we pursue
so welcome to visit and negotiate
Perfect service:
1.technical consultation
2.Plant design
3.installation and test run
4.training engineers and workers
5.good and long time after-sale service
The business process
1.send your requirements:raw material,capacity,paper grammage
2.we make the solution to you
3.come visit and negotiate
4.sign contract
5.first payment
6.production
7.pay spare money
8.delivery
9.installation ,training,test run
10.production consultlation
Company information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.
We have a large scale of products regarding paper machinery, including:
A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure
screen, screen basket, pulp pump etc.)
B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper
machine, head box, cylinder mould, dryer cylinder, roller etc.)
C.Paper making finished devices (Paper calender, pope reel,size press,
paper rewinder etc.)
Meet customers' requirements and exceed customers' expects.
We wish to found long-termcooperation with your company.

---
