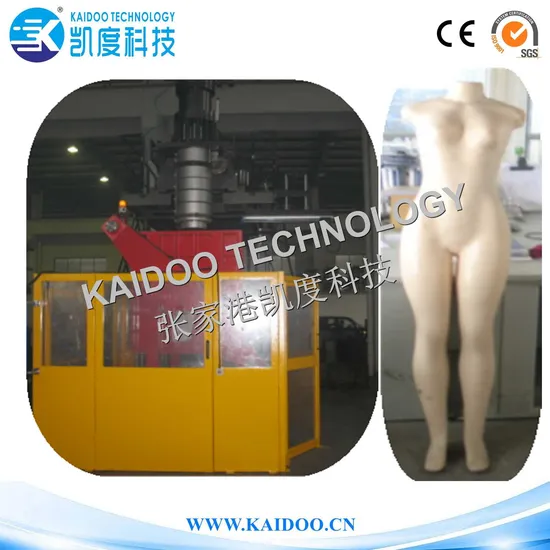

Plastic Model / Plastic Mannequin Blow Moulding Machine / Blow Molding Machine

Product Description

BRIEF INTRODUCTION
------------ZHANGJIAGANG KAIDOO PLASTIC TECHNOLOGY CO.,LTD
Kaidoo Technology is located in the beautiful Riverside City - Zhangjiagang. The company use European and American technology, supply automatic blow molding machines,(suitable for the production of 5ML-3000L plastic bottles, plastic buckets, drum,tool box, toys, fuel tanks,table panel,plastic pallet,automobile part and other products), and supply Blow mould ,Injection mould,Auxiliary equipment. The company has a a large number of outstanding skilled workers and engineers with more than 10 years of design and manufacture of various hollow equipment and maintenance services experience.
We firmly believe that only the innovation can promote development, and only through cooperation we can find win-win solution. We are sincerely looking forward to working with you full cooperation!
ENTREPRISE CULTURE
Kaidoo Technology persisted "the talented as well as the staff is the first resources" idea,and "the science and technology is the development of the enterprise source power, the innovation is enterprise's soul" the management idea,in the staff the positive initiative "the unity cooperation,grows together" the team idea ;The initiative " the good faith, is highly effective, is satisfied" the service idea,carries out "the autonomy from, asks really to strive for realism" the staff personal integrity. Through a serious of enterprise culture construction, establishes one to have the cohesive force and the team cooperation spirit, the study high quality staff troop.
WORKSHOP
MACHINE SPECIFICATION

MODEL	KDB100A-PMM (Single station & Single head )
	This model is fixed open-closing and accumulator die head series which can make Max 90L containers,suitable for production of chemical packing drums,large size toys, spoile,water container,toolcase,sprayer and so on. Technical characteristics: Hydraulic servo system control, quick action response, energy saving ;

Specification	Technical Parameter
Machine model	KDB100A-PMM
Material	PE,PP
Max container capacity	90Liter
Machine Dimension (LxWXH)	5.7 x 3.8 x 4.5 m
Machine weight	16 T
Clamping Unit
Mould platen size (WxH)	1080x1000mm
Platen opening stroke	500-1200mm
Max mould size (WxH)	800x1000mm
Clamping force	360KN
Power
Oil pump driving power	18.5 KW
Max driving total power	45 KW
Blow pressure	0.8Mpa
Air consumption	1.2 M3/min
Cooling water pressure	0.3Mpa
Water consumption	100L/min
Average energy consumption	43-50kw
Extruder unit
Screw diameter	100
Screw L/D ratio	24:1
Melting capacity for HDPE	160 kg/hour
Number of heating zone	4 zone
Screw heating power	22.4 kw
Extruder motor power	45 kw
Die head (single head)
Number of heating zone for single die head	5 zone
Heating power for single die head	35 KW
Max die-pin diameter	450mm
Accumulator capacity (HDPE)	12L (9KG)

---
