Welcome to visit

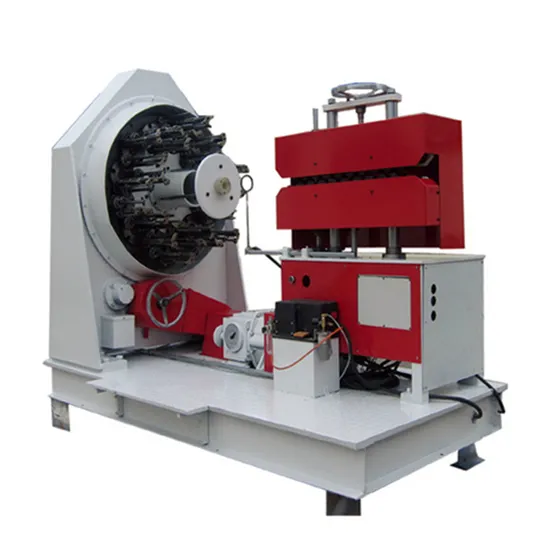

High Speed Wire Braiding Machine in China

US$10,000.00-15,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HLT
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Braiding Diameter (mm)
51-110mm
Production Name
High Speed Braiding Machine in China
Carrier Rotation Speed (R/Min)
4.56r/Min
Braiding Angle
54, 44"
Braiding Pitch
67-240mm
Pulling Speed M/H
18.6-102
Model
Gbg-64
No Carrier
64
Motor Power
7.5kw
Carriers Number
24
Shipping Method
Standard
Transport Package
Standard Seaworthy Packing
Specification
ISO9001
Trademark
HLT
Origin
Chian Jiangsu Wuxi
HS Code
84485900
Production Capacity
500PC/Years

Product Description

High Speed Wire Braiding Machine in China

Product Description
The wire braiding machines we can make as follows:
Wire diameter:0.3mm to 1.0mm
No.of spindles:16 to 156 spindle braiding machine
ID of the braids:4mm to 600mm
Material of wires:stainless steel,galvanized carbon steel, copper wire
Our braiding machines are horizontal types which enable heavy tensile strength.
Specification
single decker Wire Braiding Machine
Type No. Braid ID
(mm)
rotation speed of spindle
r/min
braiding angle Pitch(mm) pulling speed
(m/h)
no.of carriers Motor power(KW)
BG-16 4-10 24.8 54°44' 9-22 13-33 16 Y132M1-6 4.0KW
BG-20 6--13 19.8 54°44' 13-29 15-34.5 20 Y132M1-6 4.0KW
BG-24 10--31 14.25 54°44' 22--69 21--66 24 Y132M1-6 4.0KW
BG-36 15--45 10 54°44' 33--100 22--66 36 Y132M1-6 5.5KW
BG-48 30--75 7.25 54°44' 66--166 29--72 48 Y132M1-6 7.5KW
BG-64 51--110 4.56 54°44' 67--240 18.6--102 64 Y160L-6 11KW
BG-72 80--150 4.25 54°44' 170--330 44--83 72 Y160L-6 11KW
BG-96 150--400 2.75 54°44' 240--750 50--120 96 Y160L-6 11KW

Stainless steel wire braiding machine
24 carrier braiding machine
72 carrier braiding machine
96 carrier braiding machine
156 carrier braiding machine
Factory show
Our customer
Details
Parts of machine
Spindle
Company information
We are professional manufacturer of steel wire braiding machine with more than 35 years of history. Our machines are widely used in many industries: rubber hose, cable and stainless steel metal hose manufacturing.The sizes cover 16 carrier from 128 carrier braiding machine, the wire diameter starts from 0.2 till 1.0mm. Our braiding machines are horizontal types which enable heavy tensile strength.
Our service
Warranty period of one year
standard seaworthy package
Engineers available to service machinery overseas
FAQ for Steel Wire Braiding Machine
1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30 years of experience
2. What wires can your machine braid?
A. Stainless steel wire
B. Copper lad steel wire
C. Copper wire
3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing
We need to know the following information to quote you correct machineries:
1.What outer diameter of the hose you want to braid?
2. Structure of the braid?
3.How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc.
