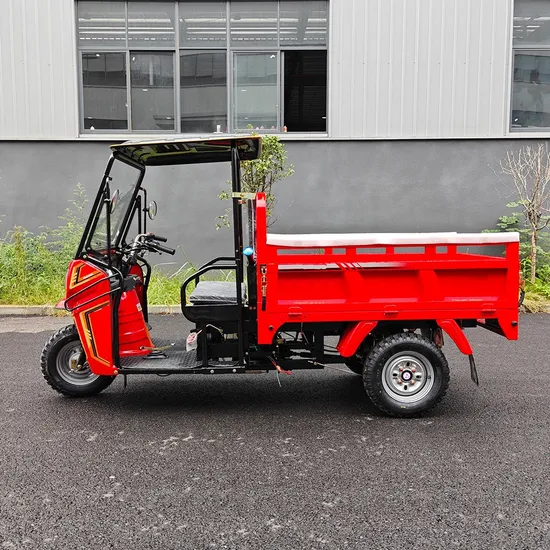

Gasoline Tricycle with Windscreen for Agricultural Transportation

Product Description

Detailed Photos
Product Parameters

BODY	Application	Semi cabin open Tricycle
	Design Max Speed	≥60 km/h
	Loading Capacity	600-1300kg
	Gross Weight	320kg
	Dimension(L*W*H)	3050*1250 mm
	Cargo size(L*W*H)	1600*1250mm
	Color	Red/Green/White/Black/Others
	Front Wheel Brake	Drum brake
CHASIS ( FRAME)	Keel (mm)	40*80
	Track	1050 mm
	Wheel Base	2100 mm
	Ground Clearance	160 mm
	Tire	4.5-12
SUSPENSION & SHOCK	Brake Mode	Front&Back wheels, Drum
	Brake Operation Mode(F/R)	Drum
	Front suspension	Double front shork absorber
	Rear suspension	Leaf spring 7 pieces
	Transmission Type	Shaft Drive
	Rear axle	Car Strength Driving rear axle
ENGINE	Engine Type	Single cylinder, 4-stroke, camshaft downward, 175CC
	Cool Type	water Cooled
	Bore Stroke	62×49.5mm
	Fuel Tank Capacity	12 L
	Fuel Type	Gasoline
	Compression Ratio	9.5:1
	Min.Fuel Consumption	<=354g kw.h
	Rated Power&Rotating Speed	8.0 kw /8000rpm
	Max.Torgue/Rotating Speed	10.5 N.m /5500rpm
PACKING	Loading Capacity (SKD)	54 Units in 40"HQ
	Delivery Time (from loading port)	30-40 Days after receiving advance payment

Product Category
Company Profile
FAQ Q: Are you a manufacturer or a trader?
A: We are a manufacturer, focusing on the R&D, production and sales of tricycles.
Q: What is your MOQ?
A: Our MOQ will be one 40HQ container. Depending on the model, the number of tricycles will range from 20 to 50.
Q: Can I buy a sample tricycle first?
A: Sorry, we cannot provide one or several sample tricycles.
Q: Can you customize tricycles?
A: Yes. We have a strong R&D team and can provide in-depth customization according to the actual needs of customers.
