CO2 on-Line Laser Marking Machine for Use in PVC/Cable/Bottle Coding

Product Description

Welcome to be our distinguished agent!
Product Description:

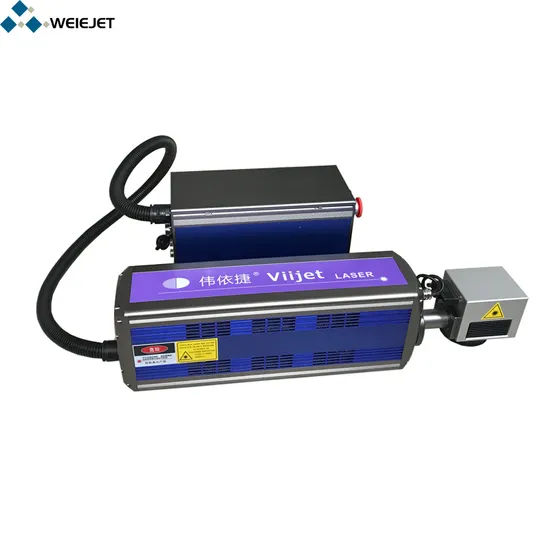

Weiejet Touch Screen All-in-one Laser Printer is featured with comprehensive functions, flexible operationand all-in-one laser code solution; To meet the demands of all kinds packaging coding requirements,the optional laser power can be 10W to 50W, marking area can be 50mm to 175mm, wavelength can be10.6um or 9.3 um; lens is optional from 70mm to 120mm;The solid structure and simple design cut downthe operation error and make the marking correct and reliable; easy to operate user interface or webinterface; WYSIWYG, touch screen user interface or web user interface optional , compatible with tabletor PC, quick and easy access to high-quality coding; TIJJET LASER patented technology to ensure thatitcan print the perfect logo on the material (composite coating) which even the laser is difficult to etch,the coding speedisupto 125 m / Minute (30W)
Terhnical Parameters:

Model no,	VC-30
Power	30W
Laser Wavelength	1064NM
Marking Area	110mm×110mm/150mm×150mm
Marking Line Depth	≤0.2mm
Maximum Marking Line Speed	12000mm/s
Minumum Focus Spot	0.005mm
Minumum Character	0.15mm
Repeat Accuracy	±0.001mm
Power Consumption	<0.5KW
Electrical Requirements	220V±22V/50HZ/12A

Advantages:
1. Great performance:
Identical marking quality on both metal and non metal materials with high speed (up to 4000mm/s speed )
2. Long lifetime:
Adopt advanced fiber generator, the life time could be up to 100, 000 hours.
3. Low consumption:
It is environment-protecting and energy-saving, power consumption is reduced by 3-10 times compared with YAG laser. Using cost is really reasonable.
4. Maintenance-free:
The machine is maintenance-free, there is almost no any parts need to change after long term using.
5. Easy operation:
The machine is very easy to operate, and even the fresh man can use it well following the instruction paper.
Services:
1.Installation Service
Installation Services are available with all machines. We dispatch technician to customer's factory for installation and preoperation of machines.
2.Training Service
Our technician is available to your factory and offer training of how to use our machines.
As well, you may send your technician to our company to learn how to operate machines.
3.Quality Guarantee
We guarantee the quality of machine (e. G. Processing speed and working performance is the same as the data of samples making).
We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for testing.
After making sure machine is working well, then shipments will be made.
Machine warranty is 2 years. We offer flexible extended warranties if needed.
Please advise us following information to recommend you most suitable machine:
1> What's kind of material do you want to mark? metal parts or non metal material?
2> What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 220*220mm, 300*300mm, or customized as your demand.
3> What is the mostly used thickness and what is the maximum thickness?
4> What is the max dimension of your materials ?
5> After mark, what will be the metal used for? (application)
6> Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
FAQ

Q: How to operate the machine? is training necessary?
A: The machine is mainly controlled by software. It's very easy, not complicated. Before shipment, we will make a simple operation manual with pictures and provide user manual of software. Generally speaking, an operator, who is not familiar with fiber laser printing machine before can still operate it very well. According to customers' requests, we can send our technician to customer' plant for machine training or customers can come to our plant for machine training if needed.
Q: In case machine exists the problem, how to do after sales service?
A: We provide two years machine warranty. During the two-year warranty, in case of machine exists the problem, we will provide parts required with free of charge by express. But as for the parts damaged by artificially, it does not fall on our warranty list. After the warranty, we still provide lifetime service.
Q: What's package?
A: We have 3 layers package. For the outside, we adopt Wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by the waterproof plastic bag.
Q: What's delivery time?
A: Generally speaking, lead time is 7 work days after receiving the payment.
Q:What's the Payment terms?
A:We accept T/T and L/C as our usual payment terms.
Q:What's the delivery terms?
A:We usually make delivery by air for sample order based on customers' requests, and we mostly make delivery by sea for formal order.
Q: Can we add a protection cover?
A: Yes, we can add a protection cover if you need. We can customize the design as customers' requests.
Why choose us?
What is our Product Line?
How is our product quality?
What about the application of our machine in marking industry?

---
