Double Station Milk Bottle Extrusion Machinery Plastic Blowing Molding Blow Moulding Machine

US$51,000.00

1-9 sets

US$45,000.00

10+ sets

Basic Info.

Model NO.

EB70U

Automation

Automatic

Certification

CE, ISO9001:2008

After-sales Service

1 Year

Output (Kg/H)

125 Kg/H

Clamping Force

100kn

Screw L/D Ratio

Function

Automatic Plastic Bottle Making Machine Line

Power(W)

21kw

Machinery Test Report

Provided

Condition

New

Showroom Location

Egypt, Turkey, United Kingdom, United States, Fran

Screw Diameter (mm)

85 mm

Power (Kw)

Station

Double Station

Air Pressure(MPa)

0.8 MPa

Video Outgoing-Inspection

Provided

Application

Bottle

Plastic Processed

PP, HDPE, Pet, PE, PE/PP, HDPE/PP

Transport Package

Fixed in The Container with Wire Rope, Suitable Fo

Specification

CE standard

Trademark

Powerjet

Origin

Guangdong, China

HS Code

8477101090

Production Capacity

100 Set/Sets Per Month Blow Molding Machine

Product Description

Product Description
EXTRUSION BLOW SERIES

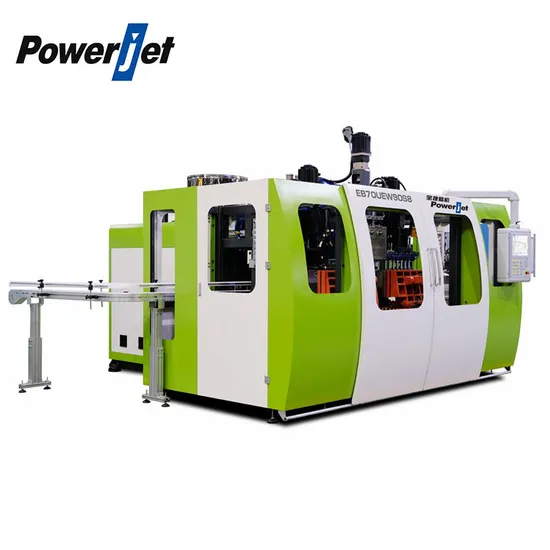

HIGH SPEED DOUBLE STATION EXTRUSION BLOW MOLDING MACHINE EB30U/EB70U
Powerjet Double Station Extrusion Blow Molding Machine EB30U/EB70U is specialized for manufacturing bottles and containers which under 10L.
FEATURES:
1:Toggle balance clamping structure, with platen opening & clamping and mold platen movement by linear guide, to achieve low friction and high speed.
2:Based on the Finite Element Analysis design, and platen, toggle and platen frame made in high intensity nodular cast iron.
3:High speed mold clamping oil cylinder with differential speed function, and high speed mold moving cylinder with special anti-shock cushion valve structure.
4:Specially designed screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers' top quality requirement.
5:Multi-screw & multi-die head can be adopted to improve the quality of the product and lower down the cost of material.
6:Multiple-way PID controlled temperature heating is precise and stable.

Product Parameters

MODEL	UNIT	EB70U75S EB70UW75S	EB70U85S EB70UW85S	EB70U75S-plus EB70UW75S-plus	EB70U85S-plus EB70UW85S-plus
Max.Product	L	7	7	10	10
Clamping Force	kN	85/110	85/110	160	160
Max.Mold Size(WxH)	mm	480x450		480x460
Max.Mold Size(WxH)	mm	580x440		580x420
Screw Diameter	mm	Φ75	Φ85	Φ75	Φ85
Screw L/D Ratio	L/D	24	24	24	24
Screw Rotary Speed	RPM	65	60	65	60
Extrusion Weight(HDPE)	kg	80	120	80	120
Extrusion Motor Power	kW	22	30	22	30
Pump Motor Power	kW	11	11	11	11
Heating Capacity	kW	19	21	19	21
Operation Pressure	Mpa	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Air Consumption	m³/min	3.0	3.0	3.0	3.0
Cooling Water Consumption(25ºC)	L/min	100	100	100	100
Machine Dimension (LxWxH)	mm	4220x3170x2600		4880x3490x2700
Machine Weight	kg	6000	6200	6100	6300

Company Profile
Powerjet Plastic Machinery Co., LTD Focus On Manufacturing And Development Of Injection Molding Machine And Blow Molding Machine Over 20 Years. Powerjet And Installed Over 18,500 Molding Machines Worldwide And Renowned In "Energy-Saving, High Performance,High Speed,Precision".Factory in 50,000 square meters, with more than 350 staff members, over 20 branch offices across the country with the advanced experience and lean production.
And we also focuse on the development of special injection molding machines according to the customer's need, like machines for PET preform,PVC/PPR fitting, thin-walled product, sillicone,batelite,and multi-material products, and also provide the turnkey projects for the customers.

Our Services & Strength
Established distributors in multiple countries like Thailand, Malaysia, Indonesia, Vietnam, Uzbekistan, USA, Mexico, Brazil, and Pakistan. With global sales network, our local offies and agents can provide more convenient and sincere services. 1:Agent In Worldwide
Setting Up Agent In More Than 20 Countries For Sales And Support
2:Lifetime Support
24 Hours Online Service And Overseas Installation & Maintenance
3:Spare Parts
We Supplying Screw, Motor, Control Panel And Plastic Mold For Machines
4:Operation Training
Support Training To Engineer For Setup, Processing & Troubleshooting
5:Plastic Mold Testing
Provide Testing Mold Service Before Customer Receiving The Machine
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 23 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.
Q2: Delivery time?
A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly).
Q3: Where is your factory located?
A3: Our factory is located at No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.
