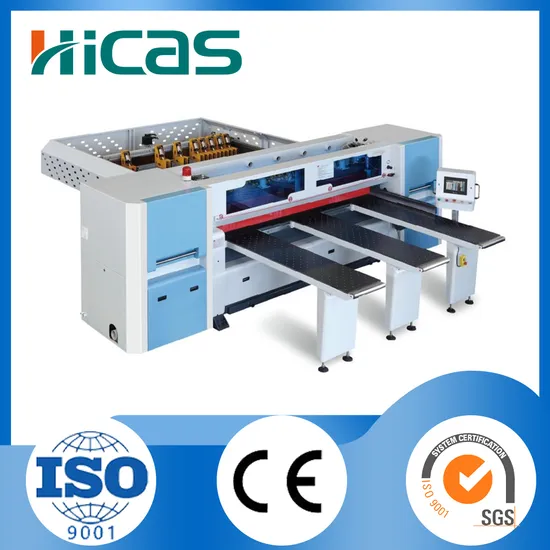

Hc2700 PC2s Woodworking Machinery Automatic Wood CNC Cutting Machine Beam Panel Saw

Product Description

HC2700 PC2S Seccionadora CNC melamine cutting machine saw machine panel saw Product Description

Name	Electronic Beam Panel Saw
Model	HC2700 PC2S	HC3300 PC2S
Max.cutting length	2600mm	3250mm
Max.cutting width	2600mm	3250mm
Max.cutting thickness	82mm
Main saw blade dia	350mm
Axis Dia.Of Main Saw Blade	30mm
Rotate Speed Of Main Saw Blade	4200rpm
Scoring saw blade dia	180mm
Axis Dia.Of Grooving Saw Blade	30mm
Rotate Speed Of Grooving Saw Blade	5600rpm
Forward speed of saw carriage	0-120m/min
Main Saw Motor	11kw
Grooving Saw Motor	1.5kw
Saw Drive Servo Motor	1.5kw
Automatic Feeding Motor	1.5kw
Pusher Motor	2kw
High pressure blower of air floating table	2.2kw
Total Power	17kw	18kw
Automatic Feeding Speed	0-120m/min
Operation Pressure	5-7kg/cm
Working table height	920mm
Voltage	380V 50HZ 3Phase
Weight	5000kg	6000kg
Packing Size	5300*6000*1750mm	6100*6200*1750mm

Main Features:
1.The moving of saw can adopt gear rack driving way
2.Process flexible two fingers structure,the smallest plywood reaches 20mm(china initiate);
3.China's first computer panel saw without loading transducer,double servo control,more cutting stability;
4.Simple and intuitive sawing control system,suitable for unskilled operators;
5.Equipped with online fault detection device,and has automatic detect function and remote maintenance support.

Detailed Photos

Easy feeding ball flotation workbench	High performance pneumatic feeding clamp,positioned by precision servo drive.
German electronic ruler closed-loop precision compensation,high-precision. Swiss feeding running gear with±0.02mm tolerance compesition.	Big saw teeth locking device or penumatic locking clamp(selection),vertical installation,vertical degree of precision,no need to adjust the assembly.
Precision expansion set lock shaft design,assembly become more easily.	Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Certifications
Package&Shipment
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Related Product:
Welcome to contact us for Best Price and Full Details.
Company Profile
1. 20+ years experience in chinese woodworking machinery market.
2. 20+ years exportation experience, have customers in more than 40 countries.
3.Engineer team with +20 years experience.
4.Diamond supplier in made-in-china.
5.Our products are widely sold in made-in-china.
6.Guarantee and After-sale service:
a. 12 months warranty for the whole machine
b. Technical support by phone, email or WhatsApp/Skype around the clock.
c. Friendly English version manual and operation video CD disk
d. Engineer available to service machinery overseas.
7. Customer feedbacks
8.Our company and products have been verified onsite by SGS Group
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer's account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines have been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.
6. Can you customized the machine?
Our machines can be customized made according to buyers' request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish, French, German

---
