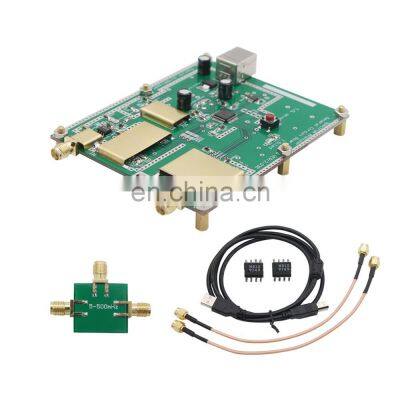

33MHz-4400MHz D6 V2.03B ADF4351 VFO Source Simple RF Spectrum Analyzer Tracking GeneratorProduct Description Specifications:- Item Name: JTGP-1033 Simple Spectrum Analyzer with Tracking Generator/ADF4351 VFO Source- Attribute: RF Frequency Domain Analysis Tool- Interface: USB- Powered Supply: Via USB- Standby Current: ≤90mA- Sweep Frequency Current: ≤350mA- Sweep Frequency Bandwidth: 33MHz-4400MHz- Turn on the tracking generator output bandwidth 35MHz-1500MHz- Sweep Frequency Step: ≥35~68.75MHz/125Hz, 68.75~137.5MHz/250Hz, 137.5~275MHz/500Hz, 275~550MHz/1kHz, 550~1100MHz/2kHz, 1100~2200MHz/4kHz, 2200~4400MHz/8kHz- Sweep Frequency Speed: ≥800 points / sec- Sweep Frequency Dynamic Log-Ratio: > 50dB- Output Power of Point Frequency or Sweep Frequency: ≈0 dBm- Input Detection: ≤10dbm- Background: ≈ -60dBm- PC Software: NWT4.11.09 Version- PC Operating System: Support for winxp, win732, win764- Uses: For measuring frequency, simple transmission frequency analysis of the transmission network. Spectrum analyzer is commonly known as an RF multimeter.Package Included:- 1 x Simple Spectrum Analyzer- 2 x SMA Jumper Wires 20cm- 1 x USB CableNote:- There is a on-board switch that controls the output of the tracking generator. The default status is the tracking function is off when it is powered on. And its status is unchanged when it is used as a signal source.- Since the input detection terminal of this unit can withstand up to 10mw or 10dbm, it is recommended to use the tracking generator in it. Please not use an external noise source instead of the tracking generator, because the total output noise of the noise source is too large. For example, the bandwidth output of noise source 1khz is 0.001mW or -30dbmW, then the 100mhz bandwidth and the theoretical output should be 100w.Packaging & ShippingPackage: Normally we use the standard exporting packaging. We also can according to clients' request . Shipping : 1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.2. By Air: Delivery from the Shanghai airport to customers’ destination city air port.3. By Sea: Delivery from the Shanghai sea port .Company InformationTZT has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over 5 years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field. Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!Our Advantages:- Source only the best consumer goods and ensure the highest quality.- Streamline the buying and payment process, and make it as easy as possible.- Help the customers all over the world discover products and manufacturers in China.- The Shortest order processed time and speed delivery. FAQQ1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Q2. What about the lead time?A: Samples arrived often need 3-5 days. Q3. Do you have any MOQ (minimum order quality)limit?A: Low MOQ, 1pc for sample checking is available. Q4. How do you ship the goods and how long does it take to arrive?A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional. Q5. How to proceed an order?A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production. Q6. Is it acceptable to print my logo on the product?A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample. Q7: Do you offer guarantee for the products?A: Yes, we offer one-year warranty for our products. Q8: How to deal with the flaw?A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8% Contact usPlease do not hesitate to contact me if you need any further informationWhatsapp/Tel/Wechat: 8619902906050Web: Address: 5H,Buidling B,Yueshang Center, Longhua Area,Shenzhen, China (Mainland)
>>
