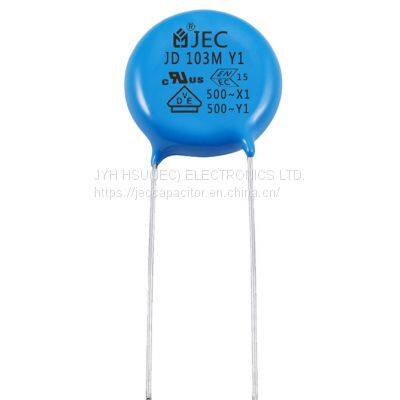

103M 500V safety capacitor multilayer ceramic capacitor manufacturers motor capacitors for sale
1. High-k dielectric ceramic dielectric, encapsulated with flame retardant epoxy resin
2. Pass the safety certificates of VDE / ENEC / IEC / UL / CSA / KC / CQC
Technical requirements reference Standard
| IEC 60384-14 ; EN 60384-14 ; IEC UL60384 ; K 60384
|
Certification mark
| VDE / ENEC / IEC / UL / CSA / KC / CQC
|
Class ; Rated Voltage(UR)
| X1 / Y1/Y2 ; 400VAC / 300VAC/500VAC
|
Capacitance Range
| 10pF to 10000pF
|
Withstand voltage
| 4000VAC for 1min/2000VAC for 1min/1800VAC for 1min
|
Capacitance Tolerance
| Y5P±10%(K ) ; Y5U,Y5V±20%(M) measured at 25℃,1Vrms,1KHz
|
Dissipation Factor (tgδ)
| Y5P,Y5U tgδ≤2.5% ; Y5V tgδ≤5% measured at 25℃,1Vrms,1KHz
|
Insulation Resistance(IR)
| IR≥10000MΩ,1min,100VDC
|
Operating Temperature
| -40℃ to +85℃ ; -40℃ to +125℃
|
Temperature Characteristic
| Y5P,Y5U,Y5V
|
Flame Retardant Epoxy Resin
| UL94-V0
|
