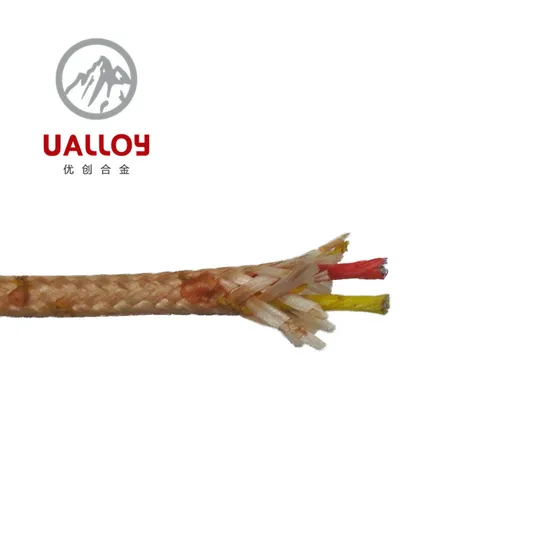

Type K Fiberglass Insulated Cable for Cooling/Heating

Product Description

type K fiberglass insulated cable for cooling/heating
The products is manufactured according to the standards of GB/T4989-1994 "Compensating Wire for
Thermocouples" and JB/T7495-1994 "Compensating Cable for Thermocouples".
This kind of products are mainly used as the connect wire in the automatic measure instruments in the
electronic power industry, chemical industry, petroleum industry, metallurgy industry and national
defense industry, etc.
More details about the product:

Item No.	K-BL-BL-1.13
Conductor Material	+Chromel, -Alumel
Conductor Dia	1.13mm
Insulation material	fiberglass
Insulation color	+ red, -yellow
Cable Construction	Parallel
Inner Shielding material	/
Jacket material	fiberglass
Jacket color	red
Outer Shielding Material	/
Ground wire	/
Cable Dielectric Test	DC.500v
Net weight	25kg/km

A link to the thermocouple bare wire:
http://ualloy.en.made-in-china.com/product/gXZEpDfuAskO/China-China-Supply-K-Type-Wire.html

---
