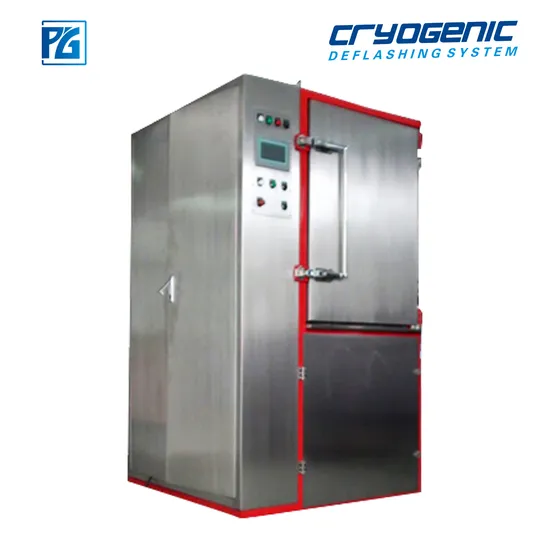

Cryogenic Deburring Machine for Grommets and Dumpers From China

Product Description

Innovative Manufacturer of Automatic Rubber and Plastic Burr Cleaning Machines Located in China
Product Description Harnessing the cutting-edge principles of cryogenic technology, our innovative deflashing machine is designed to achieve unsurpassed precision. As the temperature plummets, rubber and plastic components undergo a transformative process, turning hardened, brittle, and crystallized. This transition results in the gradual loss of their inherent flexibility, making them susceptible to breakage under external force at brittle temperatures. The molded products possess a flash significantly thinner than the primary product, allowing it to become brittle faster in reduced temperatures. Our state-of-the-art Cryogenic Deflashing Machine leverages this phenomenon, meticulously operating within the precise timeframe when the flash is brittle, yet the product retains its flexibility. It employs high-speed, specially formulated plastic media to expertly target and eradicate the delicate flashes, ensuring optimal product integrity and unmatched precision.
FUNCTIONS
Our advanced machine is extensively utilized in the precise removal of flash from small rubber and plastic components, such as O-rings, gaskets, and other intricately molded parts, offering exceptional efficiency and accuracy.
By incorporating cutting-edge cryogenic processing technology, the flashes are initially frozen, then expertly removed using high-speed projection of Polycarbonate blast media. This process significantly enhances the surface quality of rubber and plastic molded pieces, delivering superior results.
SPECIFICATIONS

TECHNICAL INFORMATION
MODE	PG-60T	PG-80T	PG-100T/120T	PG-150T
MACHINE PHOTO
SIZE(L*W*H)	1000*1000*1950MM	1100*1200*2000MM	1200*1250*2200MM	1300*1350*2250MM
WEIGHT	700KG	850KG	1000KG	1500KG
POWER	Ac380v 50Hz	Ac380v 50Hz	Ac380v 50Hz	Ac380v 50Hz
ELECTRICTY	6Kw*3Ph	7Kw*3Ph	8Kw*3Ph	9Kw*3Ph
TEMPERATURE	-130 - +50ºC	-130 - +50ºC	-130 - +50ºC	-130 - +50ºC
PRESSURE	0.5-0.7Mpa	0.5-0.7Mpa	0.5-0.7Mpa	0.5-0.7Mpa
BARRAEL CAPACITY	60L	80L	100L or 120L	150L
EFFECTIVE CAPACITY	20L	30L`	40L`	50L`
WHEEL SPEED	3000rpm - 7200rpm	3000rpm - 7000rpm	3000rpm - 7000rpm	3000rpm - 7000rpm
COOLING MEDIA	Liquid Nitrogen	Liquid Nitrogen	Liquid Nitrogen	Liquid Nitrogen
OPETATION MODE	Touch Screen	Touch Screen	Touch Screen	Touch Screen
FRAME	SUS304 WITH SOME RED PAINT ON CERTAIN AREA
WHEEL DIAMETER	AL φ250mm	AL φ300mm	AL φ350mm	AL φ350mm
BLASTING SPEED	105.7m/s	123.3m/s	143.3m/s	143.3m/s

MACHINE INNER COMPONENT PICTURES
APPLICATIONS
A. Designed for O-rings and various irregular rubber components, accommodating a diverse range of materials and sizes.
B. Ideal for precision processing of micro electronic product components.
C. Specially engineered for precision elastomeric parts with uncompromised accuracy.
D. Tailored for precision injection molding plastic parts, ensuring flawless execution.
E. Perfect for research and development part runs, facilitating innovative advancements.
F. Expertly adapted for die casting products, including zinc, aluminum, and magnesium alloy applications.
FEATURES
High Efficiency: Our machine is capable of replacing the labor of approximately 60-80 workers, streamlining the flash removal process with remarkable efficiency.
High Precision: This machine excels at removing minuscule and hardened flashes that elude manual labor, significantly enhancing the precision and quality of the products.
Cost-Effectiveness: Boasting a cost-effective design, this machine offers a more economical solution when compared to manual labor processing, ensuring significant savings.
