Basic Info.
Automatic Grade
Automatic
Application Place
Service Industry
Applicable Thickness
Middle Thickness Material
Needle Number
Twelve Needles
Embroidery Type
Towel Embroidery, Patch Embroidery, Clothing Embroidery, Hat Embroidery, Flat Embroidery
Embroidery Area
500*350mm
Warranty of Core Components
1 Year
Name
Portable Embroidery Sewing Machine
Machine Type
Computer Cap Embroidery Machine
Overall Dimensions
1090X750X1530mm
Type
Flat Embroidery Machine
Product Name
Single Head Embroidery Machine
Application
Cap/Tshirt/Finished Garments/Logos/3D Embroidery
Transport Package
Wooden Package
Production Capacity
10 Set/Sets Per Month
Product Description

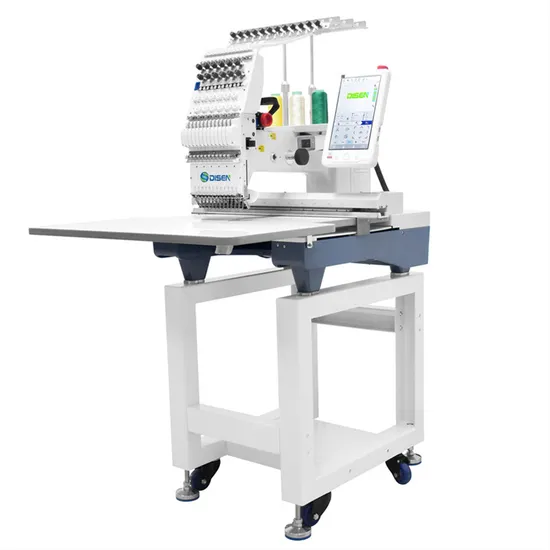

Product Description Specification MODEL: 1201 Single Head 12 Needles Embroidery Machine 1.Suitable for flat embroidery, cap embroidery and finished garments embroidery, T-shirt embroidery, logo embroidery etc. 2. Embroidery area: 500*350mm 3. Controller: 10" Touch Screen Dahao A15 System,User-Friendly Interface 4. High speed specialized cap embroidery heads,with double cam,double lever, by motorized jump. 5. Automatic thread trimmer 6. The running speed:100- 1200rpm 7. 280 degree Wide cap frame unit 8. Automatic color change and thread break detection 9. Start, Stop and emergency Stop Button 10.Design Tracing Available 11.One-Step Tracing 12. 10'' touch screen display control pannel, showing real time stitching 13. Memory size: 500 Patterns,200 Million stitches 14. Computer Reads Multiple Design Formats.Such As DST.DSB And More. 15. USB port 16.Networkable And Wi-Fi capable 17. Control system can be updated easily 18. Multi-languages:, Chinese, English, Spanish, Turkish, Russian.. French, Portuguese, Arabic,Thai, Italian,German, Dutch,Polish 19. Electricity: 110V/60Hz or 220V/50Hz Selfadaptable worldwide available 20.Equip With Laser Positioning 21.Woodencase Packing. 22.Machine Size: 1090x750x1530MM Packing Size:850x835x900mm 23.Net Weight:150KG Gross Weight:180KG
Note: For custom-made machines, the quotation needs to be quoted according to customer needs. Please contact the salesperson for details.
Other related product parameters
| Product name | Mini 12 needles single head embroidery machine |
| Number of needles | 12 needles |
| Number of heads | Single head |
| Electronic control | Dahao |
| Maximum number of stitches per pattern | 5 million stitches |
| Pattern | DST format |
| Working area | 20*30CM |
| Pattern storage | up to 200 million needles |
| Number of memory patterns | 500 |
| Speed | 1000 rpm |
| Gross weight | 50KG |
| Net Weight | 45KG |
| Packing size | 650*575*773mm |
| Warranty | 1 year |
| Accessories | Factory standard |
| Voltage | 100-240V |
| Model | DSC-J1202/J1502 | DSC-J1204/J1504 | DSC-J1206/J1506 |
| Head | 2 | 4 | 6 |
| Needles | 12/15 | 12/15 | 12/15 |
| Working Area | 400*500mm | 400*450mm | 400*450mm |
| Computer | Dahao A15 | Dahao A15 | Topwisdom 512 |
| Speed | 1200 RPM | 1200 RPM | 1200 RPM |
| Size | 1200*1210*1630mm | 1920*1320*1630mm | 2720*1320*1630mm |
| Packing Size | 1480*1030*1050mm | 2180*1110*1000mm | 2910*1160*1510mm |
| Net Weight | 310KG | 450KG | 850KG |
| Gross Weight | 400KG | 590KG | 1070KG |
