| US$0.10-0.20 | 1 Piece (MOQ) |

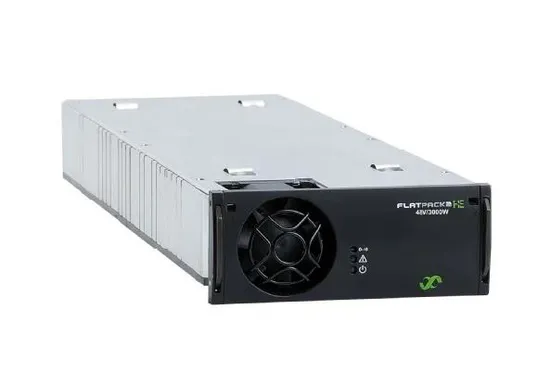

| Model | 48V / 3000W HE |
| Part number | 241119.105 |
| INPUT DATA | |
| Voltage (nominal) | 176 - 277 VAC |
| Voltage (range) | 85 - 305 VAC |
| Frequency | 45 - 66 Hz |
| Current (maximum) @ nominal input, full load | 19.2 ARMS |
| Protection | Fuse in both lines Varistor for transient protection Disconnect above 305 VAC |
| OUPUT DATA | |
| Voltage (default) | 53.5 VDC |
| Voltage (adjustable range) | 43.5 - 583) VDC |
| Power (maximum) | 3000 W |
| Power @ 85 VAC | 1380 W |
| Current (maximum) @ nominal input, full load | 62.5 A |
| Ripple, 30MHz bandwidth | < 150 mVpp |
| Psophometric noise | < 2 mVRMS |
| Static Voltage regulation | ±0.5% for 10 - 100% load |
| Dynamic Voltage regulation | ±5.0% for 10-90% or 90-10% load variation, regulation time < 50ms |
| Protection | Fuse, Short circuit proof, High temperature protection, Hot plug-in inrush current limiting |
| Efficiency @ nominal input | 96 % |
| OTHER SPECIFICATIONS | |
| Isolation | 3.0 kVAC - input to output, 1.5 kVAC - input to earth, 500 VDC - output to earth |
| Alarms: Red LED 'on' | Low mains shutdown, High and low temperature shutdown, Rectifier Failure, Overvoltage shutdown on output, Fan failure, Low voltage alarm, CAN bus failure |
| Warnings: Yellow LED 'on' | Rectifier in power derate mode, Remote battery current limit activated, Input voltage out of range, flashing at overvoltage |
| Normal (module running): Green LED 'on' | |
| Acoustic noise, full load @ Tambient = 25°C full load @ Tambient = 40°C | < 40 dBA < 58 dBA |
| MTBF (Telcordia SR-332 Issue I method III (a)) | >300 000 (@ Tambient : 25 °C) |
| Operating temperature | -40 to +75°C (-40 to +167°F)4), humidity 5 - 95% RH non-condensing |
| Temperature de-rating | >55°C4) (131°F), 2100W @ 75°C (167°F)4) |
| Storage temperature | -40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing |
| Dimensions[WxHxD] / Weight | 109 x 41.5 x 327mm (4.25 x 1.69 x 13") / 1.95 kg (4.3 lbs) |
| DESIGN STANDARDS | |
| Electrical safety | EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, UL 60950-1:2014, CSA C22.2 No.60950-1-07:2014, IEC 60950-1:2013 |
| EMC | EN 61000-6-1:2019, -6-2:2019, - 6-3:2007 + A1:2011, - 6-4:2019, EN 61000-3-2:2019 ETSI EN 300 386 V.2.1.1, Telcordia NEBS GR1089 CORE |
| Marine | DNVGL-CG-03392) |
| Environment | ETSI EN 300 019: 2-1 (Class 1.2) & 2-2 (Class 2.3) EU 2015/863 (RoHS) & 2012/19/EU (WEEE) Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2. Other operating conditions as per IEC 62040-5-3:2016 clause 4.3, must be advised |
