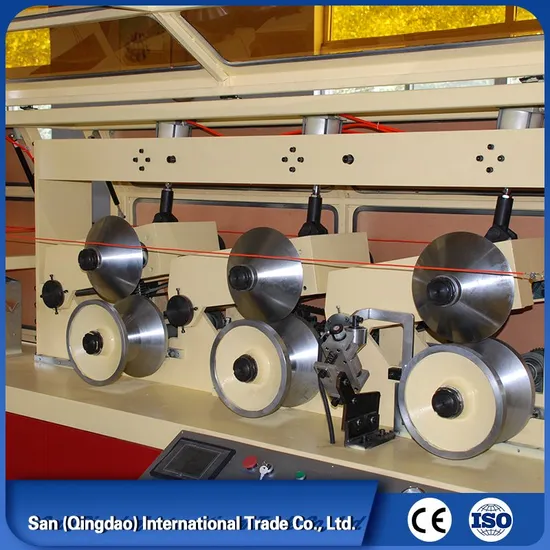

Cheap New Design Paper Edge Protector Machine

US$20,000.00-40,000.00 1 Set (MOQ)

Basic Info.

Model NO.
120D
Certification
CE
Customized
Customized
Automatic Grade
Automatic
Transport Package
Seaworthy
Specification
24.5*1.8*1.9m
Trademark
SAN
Origin
China (Mainland)
HS Code
8441400000
Production Capacity
100 Sets/Year

Product Description


Paper protector / edge protector / paper edge / edge board / corner board / angle board / edge board protectors / edge protection board are the right solution to prevent your products from damage during handling, storage and transportation.
Model SANPPL-120AL
L protector size (mm) 25-120
Leg difference Can be symmetrical and assymetrical
U protector (mm) 30-100×50 (Max)
Thickness (mm) 3-6.Special order for max thickness of 8mm and 10mm
Applicable inner paper 360-600g/m2 fluting paper or corrugating medium paper
Applicable surface paper 175-250gsm craft paper
Core diameter of paper roll 3"(76mm) (4"or other size must be confirmed when making order)
Max. quantity of layer 13
Max. speed 20
Normal working speed 0-15
Control system PLC
Paper stands Liner stands (composite stands is optional)
Gluing system cascade type gluing system
Glue feeding Automatic feeding with level control
Transmission system Chain type
Mould pressing adjustment Double hand wheel
Cut method pneumatic cutting
Quantity of cutter 1
Min cut length 500mm (machine speed will be at 10m/min)
Cut tolerance ±3mm
Power supply 4.5KW
Total weight (MT) 4
Dimension (m) 19.25×0.89×1.5
Operator 2-3

San (Qingdao) Machinery Co., Ltd was established in March 2005, based on the tenets of providing professional services wholeheartedly, supplying trustworthy and high efficiency products, helping employees build strong selves and live a prosperous life, and contributing to the development and progress of human society. In conformity with the management philosophy of being responsible, leading and realistic, "San" people are summing up experience and innovating constantly in technology, production, sales and service, and sparing no effort to be a leading integrated service provider for paper machines and paper converting machines in China.
