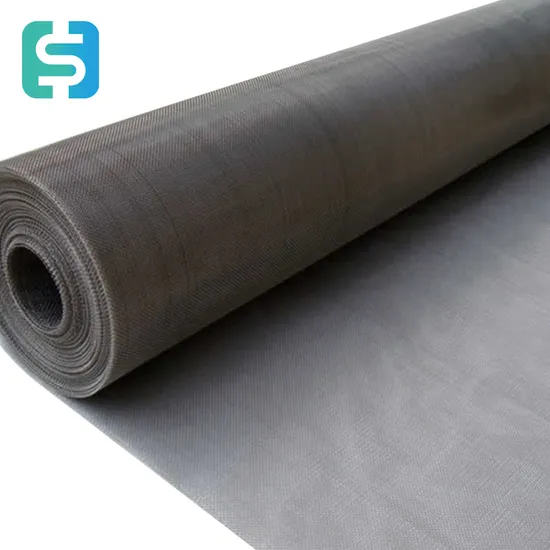

SS304/316 60 120 Welded Knitted Mesh Stainless Steel Metal Woven Wire Mesh for Filter/Sieve/Mining

Product Description

Product Description 1.Product Description
Wire mesh is widely used in the electronics, industrial, chemical,mining, transportation and aerospace industries for filter andacoustic applications. Wire mesh is available in many differentmetals, colors, weave types, sintered and non-sintered. Mostmetal wire mesh offers great acid, alkali,heat and wearresistance.Custom materials, colors, weave types and meshcounts are available by request.
Stainless steel mesh as one of my company's leading products, over the years, we have been unremitingly introduced the international advanced weaving equipment and weaving technology, and strive to improve the quality of products. As one of the largest industrial metal mesh manufacturers in China, our goal is to continue to forge ahead and lead the world.
It is mainly used for screening and filtration under acid and alkali environmental conditions. It is used for mud mesh in petroleum industry, chemical fiber industry as screening mesh, electroplating industry as pickling mesh and gas, liquid filtration and other media separation.
2. Available Weaving Type1. Plain Weave: Also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction. 3. Plain Dutch Weave: Similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size. 4. Twill Dutch Weave: Similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size. 5. Reversed Dutch Weave: Difference from standard Dutch weave lies in the thicker warp wires and less weft wires.
6. Rectangular Weave :Each warp is crossed above and below each weft wire, and the warp and weft are woven at a 90 degree Angle. Similar to plain weave, warp and weft wires usually have the same diameter, except that the mesh is an evenly sized rectangle.
2. Stainless Steel Wire Mesh Varieties according to materials:
Stainless Steel 304 , 304L, 316, 316L , 2205 , 2507,430, 310S, 904L etc .
3.Stainless Steel Wire mesh is classified into two kinds according to Edge types: locked closed edges open edges
Product ParametersPlain Weave Stainless Steel Woven Wire Mesh

Normal Specification Maishi Plain Weave Stainless Steel Woven Wire Mesh
Mesh/inch	Wire diameter (mm)	Aperture (mm)	--	Mesh/inch	Wire diameter (mm)	Aperture (mm)
2mesh	1.80	10.90		60mesh	0.15	0.273
3mesh	1.60	6.866		70mesh	0.14	0.223
4mesh	1.20	5.15		80mesh	0.12	0.198
5mesh	0.91	4.17		90mesh	0.11	0.172
6mesh	0.80	3.433		100mesh	0.10	0.154
8mesh	0.60	2.575		120mesh	0.08	0.132
10mesh	0.55	1.990		140mesh	0.07	0.111
12mesh	0.50	1.616		150mesh	0.065	0.104
14mesh	0.45	1.362		160mesh	0.065	0.094
16mesh	0.40	1.188		180mesh	0.053	0.088
18mesh	0.35	1.060		200mesh	0.053	0.074
20mesh	0.30	0.970		250mesh	0.04	0.061
26mesh	0.28	0.696		300mesh	0.035	0.049
30mesh	0.25	0.596		325mesh	0.03	0.048
40mesh	0.21	0.425		350mesh	0.03	0.042
50mesh	0.19	0.318		500mesh	0.025	0.0385
Technical Note: 1. Standard roll length: 15.24m, 30m, 30.5m, 61m 2. Standard roll width: 0.61m(2'), 0.9144m(3'), 1.22m(4'), 1.30m(4.265'), 1.524m(5), 1.60m(5.25') 3. Special sizes available at request 4. Packing: In waterproof paper, PVC bag, wooden case. Custom packing available at request.

Twill weave

Mesh/inch	Diameter(mm)	Aperture(mm)	-	Mesh/inch	Diameter(mm)	Aperture(mm)
100mesh	0.14	0.114		325mesh	0.035	0.043
120mesh	0.1	0.111		350mesh	0.032	0.0405
150mesh	0.09	0.079		400mesh	0.03	0.0335
180mesh	0.07	0.071		450mesh	0.026	0.0304
200mesh	0.06	0.067		500 mesh	0.025	0.0258
250mesh	0.045	0.0566		600 mesh	0.018	0.0243
300mesh	0.04	0.0446		635mesh	0.018	0.022

Plain Dutch Weave

Mesh/inch Wrap*weft	Wire diameter Wrap*weft(mm)	Aperture (um)	-	Mesh/inch Wrap*weft	Wire diameter Wrap*weft(mm)	Aperture (um)
8 X 62	0.63mm X 0.45mm	300		45 X 250	0.16mm X 0.112mm	56
10 X 79	0.50mm X 0.355mm	250		50 X 250	0.14mm X 0.11mm	53
12 X 64	0.58mm X 0.40mm	280		55.5 X 280	0.14mm X 0.10mm	50
14 X 88	0.40mm X 0.30mm	180		65 X 330	0.11mm X 0.08mm	36
19 X 140	0.315mm X 0.20mm	140		70 X 350	0.11mm X 0.08mm	35
20 X 300	0.35mm X 0.20mm	-		70 X 385	0.11mm X 0.07mm	32
24 X 110	0.355mm X 0.25mm	120		78 X 700	0.11mm X 0.08mm	30
25 X 140	0.28mm X 0.20mm	100		80 X 400	0.10mm X 0.065mm	40
30 X 150	0.25mm X 0.18mm	80		80 X 600	0.10mm X 0.06mm	-
35 X 175	0.224mm X 0.16mm	71		80 X 800	0.15mm X 0.04mm	-
40 X 200	0.20mm X 0.14mm	60		81 X 780	0.10mm X 0.07mm	30
				90 X 550	0.12mm X 0.05	-

Twill Dutch weave

Mesh/inch Wrap*weft	Wire diameter Wrap*weft(mm)	Aperture (um)	-	Mesh/inch Wrap*weft	Wire diameter Wrap*weft(mm)	Aperture (um)
91 X 787	0.10mm X 0.07	25		200 X 600	0.071mm X 0.06	-
101 X 900	0.10mm X 0.063	20		200 X 800	0.071mm X 0.06	-
120 X 400	0.10mm X 0.075	-		200 X 1400	0.071mm X 0.04	12
127 X 1100	0.07mm X 0.05	17		202 X 1760	0.05mm X 0.032	10
160 X 1500	0.063mm X 0.04	15		216 X 1860	0.045mm X 0.030	9
165 X 400	0.071mm X 0.06	-		254 X 2000	0.04mm X 0.028	8
165 X 600	0.071mm X 0.05	-		285 X 2235	0.036mm X 0.025	7
165 X 800	0.071mm X 0.05	25		312 X 2100	0.035mm X 0.025	-
165 X 1100	0.071mm X 0.045	-		318 X 2235	0.036mm X 0.025	-
165 X 1400	0.071mm X 0.04	16		325 X 2300	0.035mm X 0.025	5
174 X 1700	0.063mm X 0.032	13		400 X 3100	0.035mm X 0.019	3

If you did not find the mesh you want, please contact us any time. Detailed Photos
Company ProfileSuzhou Woju Environmental Protection Technology Co., Ltd. is located in Suzhou City, Jiangsu Province, is a profession al production and supply of metal regular packing - corrugated packing and mesh corrugated packing, gas and liquid filter, random packing - Pall ring and moment saddle ring, wire mesh defroster, hole plate defroster, baffle defroster and tower inner parts manufacturers.
Our company is a set of design, production, sales, installation as one of the factory company, the company from the beginning of the establishment in 2017, has been adhering to the "for customers to solve problems" spirit, sincere intersection with each customer, so that customers buy our products no longer have worries.
Our company has 80 employees, most of whom are experienced operation, maintenance and installation personnel, over the years with Tianjin University and other professional authorities to exchange cooperation to provide customers with the required tower body filtration engineering consulting and solutions. We can provide one-stop service for the design,production, transportation and installation of the whole interior of your tower.
Certifications
Welcome your inquiry and expect to provide satisfactory products and services for you.

---
