Product Overview

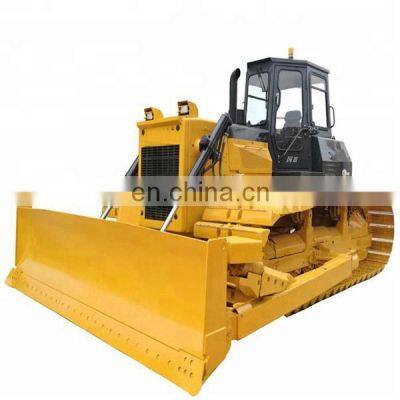

SD16T Bulldozer
SD16T mechanical drive series bulldozer adopts the mechanical drive, featuring high technologic content, advanced and reasonable design, strong power, and high productivity.
Engine power/speed: 120KW/1850rpm
Operating weight of whole machine: 17000kg
Blade capacity: 4.5 for straight tilting blade 4.3 for angle blade
It’s applicable for the bulldozing, digging, landfill, and other bulk material operations on the roads, railways, mines, and airports and is an essential mechanical machine for the building constructions and water conservancy constructions (such as national defense projects, mine constructions, and urban and rural roads).
SD16T is the standard bulldozer and SD16TC, SD16TF, and SD16TL bulldozers are also available.
Item
| SD16T(Standard version)
| SD16TL(Wetland version)
| SD16TR(Environmental sanitation version)
| SD16TC (Coal version)
|
Performance parameters
|
|
|
|
|
Operating weight (Kg)
| 17000
| 18400
| 18400
| 17500
|
Ground pressure (kPa)
| 58
| 23
| 23
| 59.2
|
Engine
|
|
|
|
|
Engine model
| WP10
| WP10
| WP10
| WP10
|
Rated power/rated speed (kW/rpm)
| 131/1850
| 131/1850
| 131/1850
| 131/1850
|
Overall dimensions
|
|
|
|
|
Overall dimensions of machine (mm)
| 5140*3388*3032
| 5560*4150*3074
| 5560*4150*3074
| 5430*3900*3032
|
Driving performance
|
|
|
|
|
Forward speed (km/h)
| F1: 2.67/3.76/5.41/7.62/11.13
| F1: 2.67/3.76/5.41/7.62/11.13
| F1: 2.67/3.76/5.41/7.62/11.13
| F1: 2.67/3.76/5.41/7.62/11.13
|
Reversing speed (km/h)
| R1: 3.48/4.90/7.05/9.92
| R1:
3.48/4.90/7.05/9.92
| R1: 3.48/4.90/7.05/9.92
| R1:
3.48/4.90/7.05/9.92
|
Chassis System
|
|
|
|
|
Center distance of track (mm)
| 1880
| 2300
| 2300
| 1880
|
Width of track shoes (mm)
| 510
| 1100
| 1100
| 610
|
Ground length（mm）
| 2430
| 3140
| 3140
| 2430
|
Tank capacity
|
|
|
|
|
Fuel tank（L）
| 320
| 320
| 320
| 320
|
Working device
|
|
|
|
|
Blade type
| Straight tilting blade
| Straight tilting blade
| Sanitation blade
| Coal blade
|
Digging depth (mm)
| 540
| 495
| 495
| 540
|
Ripper type
| Tri-Teeth
| ——
| ——
| ——
|
Ripping depth (mm)
| 570
| ——
| ——
| ——
|
