Pdcv (Pressure Differential Control Valve)

Product Description

Size	DN15 DN 20 DN25 DN32 DN40 DN50
Material	Brass
Surface	Brass/Nickel Plating
Connection	Male/ Union
Thread	BSP ISO228 G
Working Temperature	-20 ºC to 120 ºC
Medium	district heating circulation water/ glycolic mixtures up to 50%
Test Pressure	100% tested with 0.6MPa - 0.8MPa by air
Setting	10-60Kpa
OEM Accept	Yes
Place of origin	Zhejiang,China(Mainland)

The Brass Differential Pressure Control Valve use together with balance valve will be more better.

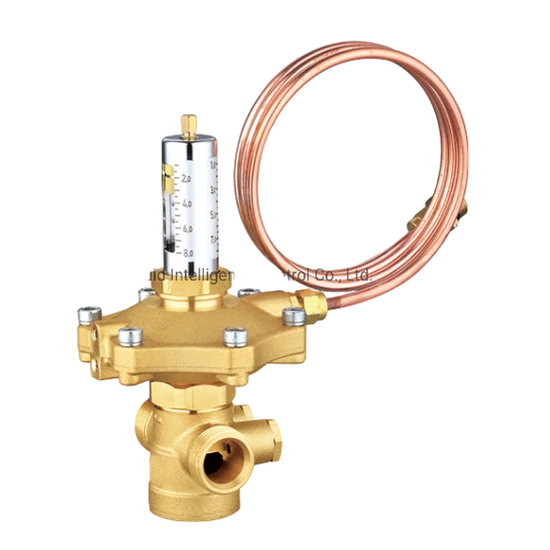

Differential Pressure Control Valve
HTV6023/THV03003
DN 15-50,
Adjustable set point 5-30kPa

Operating pleassure	DN15-- PN16, DN20-50-PN20
Working temperature	0 ºC to 120 ºC
Transport and storage temperatures	-40 ºC to 70 ºC
BODY	BRASS
Membrane	EPDM
Pulse tube	Copper 1m

Adjustment pressure

Setting Pressure Change 1 5 1.5 7.15 2 9.3 2.5 11.45 3 13.6 2.5 15.75 4 17.9 4.5 20.05 5 22.2 5.5 24.35 6 26.5 6.5 28.7 7 30.8 7.5 33 8 35

We can adjust the pressure by adjusting the nut or stem in the scale sleeve, and the valve setting rate from 5kpa-35kpa , each setting 0.5 on sleeve pressure change 2.15Kpa, If the scale is 3.5, the pressure drop is 15.75Kpa. the details please check the table
Warning notices
The valves must be installed for the correct application using clean fittings. strainer should be fitted to prevent impurities.
Test points
Two test points are fitted next to each other. This arrangement ensures the best accessibility and optimal connection of measuring devices in all installation positions
More Details please sent Email to to request for the catalogue.
Quality Control
Hot forge
Our brass valve is produced by forging, through forging the valve product strength is greater, no porosity, can effectively prevent the leakage of the valve body.
CNC Machining Our products are processed by precision CNC machine tools, with high machining accuracy up to 0.1 micron. We have machining centers to meet customers' requirements for products with high coaxiality

Machining Inspection
In our machining process, each size needs to be strictly tested. Workers will conduct a self-inspection of their products every 2 hours, and QC will conduct a workshop inspection every 2 hours to ensure that the size of products fully meets the requirements of the drawings
Assembly Room Our assembly shop USES the assembly line, the result of teamwork can guarantee the output of a large quantity of products.100% of the products on the production line need to pass the leak test. We use the pressure of 6-8bar to test each product. Only after passing the test can the products be packed into cartons.
FAQ
1. Can I request a sample order for a valve?
A: Certainly! We welcome sample orders to allow you to test and assess the quality of our products. We also accept mixed samples.
2. Is there a minimum order quantity (MOQ) for valve orders?
A: Yes, there is an MOQ. However, we have a low MOQ requirement. For specific quantity details, please contact us to negotiate.
3. How do I proceed with placing an order for a valve?
A: To begin, please inform us of your requirements or application. You can provide us with the item number, size, and desired order quantity. If the exact product is not available, you can provide us with a drawing.
Next, we will provide a quotation based on your requirements or offer our suggestions.
Once the price is confirmed, the customer can place a deposit for the formal order and confirm the sample if necessary.
Finally, we will arrange the production and delivery of the order.
4. Do you offer a guarantee for your products?
A: Yes, we provide a 3-year warranty for all our products.
5. What is your estimated delivery time?
A: The production time typically ranges from 35 to 45 days. However, if the samples need to be confirmed for the first time, the delivery time can be negotiated.

---
