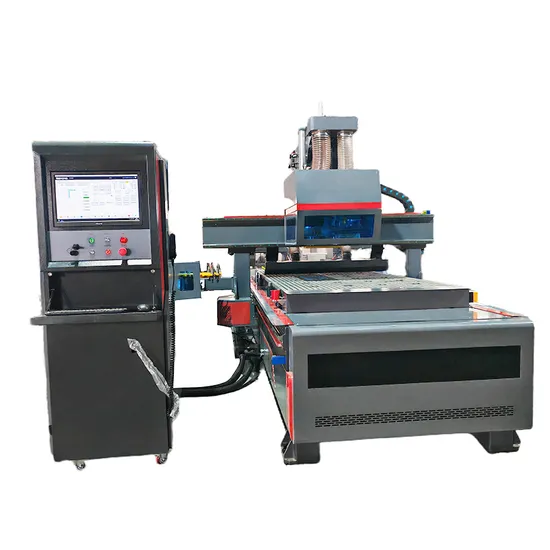

Round Disk Type Automatic Tool Changing Woodworking CNC Router Machine

Product Description

Product Description
Thick steel welded bed structure
Taiwan HIWIN square guide rails 30 size and helical rack transmission
9KW ATC air cooling spindle,also can be optional 5+4 boring unit
Shanghai WEIZHI servo motor 1KW
Shanghai WEIHONG control system
vacuum table with 7.5KW vacuum pump
5.5kw dust collector
auto pushing device to pushing material automatically
auto tool sensor and position limiting switch

Detailed Photos
Product Parameters

X,Y Working Area	1300*2800mm
Z working area	200mm
Whole structure	thick steel body structure and gantry bar
XYZ structure	Taiwan HIWIN square guide rails 30mm Helical rack transmission for X and Y axis, Taiwan TBI ball screw for Z axis
Repositioning Positioning Accuracy	±0.02mm
Table Surface	Vacuum table with water 7.5KW vacuum pump
Max. idling speed	0-100m/min
Max. working speed	0-30m/min
X Y Z working Accuracy	0.02mm
Spindle	9KW China HQD brand air cooling spindle with auto tool changing function With CC brand 5+4 vertical drilling unit to drill holes for kitchen cabinets
Spindle rotating speed	0-24000rpm
Diameter of tools	Φ3.175 -Φ32
Operation language	Shanghai WEIHONG brand control system
Driving system	Shanghai WEIZHI brand 1KW servo motor and driver With Japanese SHIMPO reducer
Operating system	G-code*.u00*.mmg*.plt
Working voltage	380V/3 phase 50-60HZ
software	Supporting Type3, Wentai, Artcam, Alphacam etc software
Tool Magazine	20 pieces cutters carousel ATC storage (which one can change 20 cutters automatically with round disk cutter storage)
Dust collector	5.5KW dust collector with two bags
Inverter	Shanghai FULING inverter

Our Advantages
Thick steel welded bed structure with more than 1.8 tons
Auto pushing device with two cylinders and three guide rails
3mm diameter pop pins position cylinders
Carousel ATC storage with 20 cutters
Auto lubricating system
Fast processing buttons
Packaging & Shipping
wooden case by LCL shipping Naked package for FCL shipping
