Customizable Diamond Wire Cutting Machine for Solar Panel Manufacturing Tools

Product Description

Equipment Use: This state-of-the-art model from Yutian Changtong Eiectron Co., Ltd. has been meticulously crafted to revolutionize cutting efficiency for our discerning clientele. With an impressive roller length of 690mm and a versatile table size of 170/145mm*690mm*160mm*2, it masterfully undertakes the precise cutting of materials, accommodating thicknesses from a delicate 0.3mm up to a sturdy 65mm.

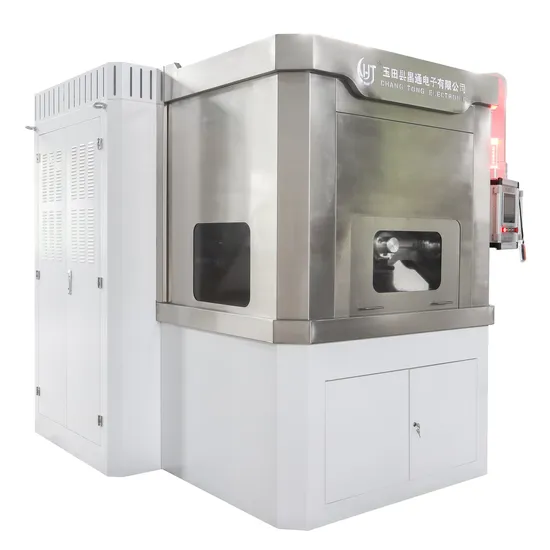

Introducing the unrivaled CHTXQ-690F Double Plate Multi-Wire Cutting Machine - Product Features
1. At the heart of its innovative design, four motors independently propel each roller, transitioning them into powerful drive shafts. This breakthrough minimizes wear on the steel line against the roller, greatly extending the roller's lifespan. The roller bracket, with its processing center molding, ensures flawless spindle installation and perfect coaxial alignment.
2. Outfitted with an intuitive LED display, this machine offers crystal-clear and immediate cutting data insights, elevating operational efficiency to new heights.
3. A clever under-table design facilitates material cutting from the bottom up, streamlining the loading and unloading process for uninterrupted operation.
4. Offered in two exceptional models: high-speed and standard. The high-speed version outpaces the standard model with swifter line speeds and enhanced cutting efficiency, enabling the use of thinner diamond lines for identical material cuts.
5. With its capability for transverse movement, this adaptable table allows forward and backward motion, simplifying tile cutting and introducing advanced single-line cutting functionality.
6. Featuring a comprehensive loading area of 170/145mm*690mm*160mm*2, this machine dramatically boosts cutting efficiency, adeptly handling larger volumes of material.
7. With its spindle accuracy impressively set at ≤0.01mm and incorporating patented dust structure technology (Pat. No. ZL201320681902.7), it guarantees stable operations and effortless disassembly.
8. User-friendly and effortlessly operable, it boasts an automatic lifting shield along with a fully expandable workbench, simplifying material and roller loading and unloading processes.

	unit	parameter
Maximum Worksize	mm	170/145*690*160*2
cutting thickness	mm	0.6~65
running speed	m/min	0~2200
Table lift stroke	mm	220
Table cutting feed speed	mm/hour	0.1~100
The amount of wire output from the supply wheel	Km	30(φ0.2diamond wire)
Diamond diameter	mm	φ0.06~φ0.35axle
Roller outside diameter*number of axles	mm	φ155/φ180*690*4
boundary dimension	mm	≈1830*2800*2650
machine weight	Kg	6500~115000
power		AC380V/50HZ three-phase four-wire
Total machine power rating	Kw	54 above

Dominating as a double-station multi-wire cutting marvel, this machine utilizes diamond wire for proficient processing. It skillfully manages two plate materials simultaneously, with a roller length of 690mm and a maximum cutting area of 220mm*690mm*160mm*2. For hard and brittle materials, it offers both single and multi-line cutting, accommodating blade thicknesses from 0.5mm to 65mm.
This model is a powerhouse in multi-line cutting, meticulously designed for diamond line processing. It features a roller length of 570mm and a capacious maximum cutting area of 220mm*570mm*160mm. Perfectly suited for slicing products with thicknesses ranging from 0.3mm to 65mm, it excels in the precise processing of hard and brittle straight sheets.
Crafted as a compact multi-line cutting solution, this model effortlessly handles small batch product processing. Offering options for single or double stations, it simplifies specification changes, accommodating cutting thicknesses from 0.5mm to 30mm. Ideal for single and multi-line cutting of small batches of hard and brittle materials.
>Stable Wire Web Control
Incorporating a cone-positioned structural design, the rollers and wire spools deliver remarkable accuracy and rigidity, minimizing wire web vibrations to ensure a stable operation.
>Optimized Pulley System
Engineered with 8 meticulously placed pulleys, this system significantly reduces diamond wire torsion, tension fluctuations, and wire breakage, enhancing overall durability and performance.
>Easy Wire Winding
The wire pay-off wheel uses a standard universal spool (PV600 reinforced I-wheel), eliminating the need for rewinding, providing unmatched convenience and efficiency.
>Safety Guarantee
Equipped with an electric lift and a robust safety device, the main operation door ensures secure, convenient access and operation.
>Wire Break Memory System.
>Easy Operation
