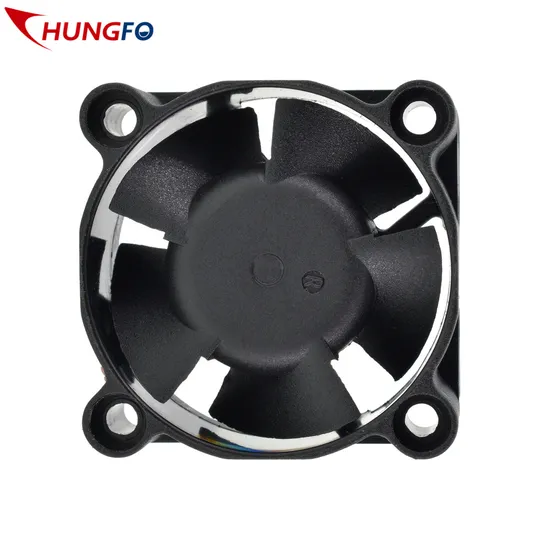

Electric Cabinet Cooling Axial DC Exhaust Fan 40X40X20mm for Ventilation

Product Description

DC AXIAL FAN 40x40x20mm(1.57"x1.57"x0.78")
General Specification:
Frame:PBT(Black)UL94V-0
Impeller:PBT(Black)UL94V-0
Operating Temperature:-10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

Model No.	Bearing Type	Voltage (V)	Speed Type	Speed (RPM)	Current (A)	AirFlow (CFM)	Pressure (mmAq)	Noise (dBA)	Weight (g)
D04020	S/D	5	H	8000	0.23	8.02	5.10	30	24
			M	6500	0.14	6.56	3.70	26
			L	5000	0.09	5.08	2.10	20
		12	H	8000	0.12	8.02	5.10	30
			M	6500	0.07	6.56	3.70	26
			L	5000	0.05	5.08	2.10	20
		24	H	8000	0.06	8.02	5.10	30
			M	6500	0.06	6.56	3.70	26
			L	5000	0.04	5.08	2.10	20

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.
More Models

Type	Model	Size	Type	Model	Size
DC Axial Fan	D02507	25x25x7mm(0.98"x0.98"x0.27")	DC Axial Fan	D06025	60x60x25mm(2.36"x2.36"x0.98")
	D02510	25x25x10mm(0.98"x0.98"x0.39")		D07015	70x70x15mm(2.75"x2.75"x0.59")
	D03007	30x30x7mm(1.18"x1.18"x0.27")		D07025	70x70x25mm(2.75"x2.75"x0.98")
	D03010	30x30x10mm(1.18"x1.18"x0.39")		D08010A	80x80x10mm(3.15"x3.15"x0.39")
	D03015	30x30x15mm(1.18"x1.18"x0.59")		D08010B
	D03510	35x35x10mm(1.37"x1.37"x0.39")		D08015	80x80x15mm(3.15"x3.15"x0.59")
	D04007	40x40x7mm(1.57"x1.57"x0.27")		D08020	80x80x20mm(3.15"x3.15"x0.78")
	D04010A	40x40x10mm(1.57"x1.57"x0.39")		D08025A	80x80x25mm(3.15"x3.15"x0.98")
	D04010B			D08025B
	D04010C			D08025C
	D04015	40x40x15mm(1.57"x1.57"x0.59")		D08038	80x80x38mm(3.15"x3.15"x1.5")
	D04020	40x40x20mm(1.57"x1.57"x0.78")		D09025A	92x92x25mm(3.62"x3.62"x0.98")
	D04028	40x40x28mm(1.57"x1.57"x1.10")		D09025B
	D05010A	50x50x10mm(1.96"x1.96"x0.39")		D09025C
	D05010B	50x50x15mm(1.96"x1.96"x0.59")		D09232	92x92x32mm(3.62"x3.62"x1.26")
	D05015	50x50x15mm(1.96"x1.96"x0.59")		D09238	92x92x38mm(3.62"x3.62"x1.5")
	D05020	50x50x20mm(1.96"x1.96"x0.78")		D11335	113x113x35mm(4.46"x4.46"x1.38")
	D05025	50x50x25mm(1.96"x1.96"x0.98")		D12025A	120x120x25mm(4.72"x4.72"x0.98")
	D06010	60x60x10mm(2.36"x2.36"x0.39")		D12025C
	D06015	60x60x15mm(2.36"x2.36"x0.59")		D12038	120x120x38mm(4.72"x4.72"x1.5")
	D06020	60x60x20mm(2.36"x2.36"x0.78")		D12539	125x125x39mm(4.93"x4.93"x1.54")
	D06025	60x60x25mm(2.36"x2.36"x0.98")		D13538	135x135x38mm(5.31"x5.31"x1.49")
