Basic Info.
Energy Saving
Energy Saving
After-sales Service
Long Time
Transport Package
Plywood Box
Production Capacity
5000/Month
Product Description
Product Application 1. 220v pellet press can make both wood pellet and animal feed, designed for different usage.
2. Our 220v pellet press is for pressing all kinds of bio-mass material to be solid pellets which is for burning fuel or animal feeding. Its ideal pellet machine for personal, family and small plants due to easy operation and maintenance.
3. Pine wood sawdust is the best materials to make pellets. Because it is rich in oil, and the sawdust can be pressed very high quality wood pellets.
220v pellet press specification:
Model
| Power
| Capacity
| N/G weight
| Packing size
|
TOPS120B-2.2
| 2.2/3kw 2ph
| 30-60kg/h
| 80/90kg
| 75*32*61cm
|
TOPS120C-2.2
| 2.2/3kw 2ph
| 30-60kg/h
| 90/100kg
| 80*35*74cm
|
TOPS120B-3
| 3kw 3phase
| 40-100kg/h
| 80/90kg
| 75*32*61cm
|
TOPS120C-3
| 3kw 3phase
| 40-100kg/h
| 90/100kg
| 80*35*74cm
|
TOPS150B
| 4kw 3phase
| 100-200kg/h
| 100/120kg
| 75*35*65cm
|
TOPS150C
| 4kw 3phase
| 100-200kg/h
| 100/120kg
| 75*35*65cm
|
TOPS200B
| 7.5kw 3phase
| 200-300kg/h
| 200/230kg
| 100*43*95cm
|
TOPS200C
| 7.5kw 3phase
| 200-300kg/h
| 200/230kg
| 100*43*95cm
|
TOPS230B
| 11kw 3phase
| 300-400kg/h
| 290/320kg
| 114*47*97cm
|
TOPS230C
| 11kw 3phase
| 300-400kg/h
| 290/320kg
| 114*47*97cm
|
TOPS260B
| 15kw 3phase
| 400-600kg/h
| 330/360kg
| 120*52*105cm
|
TOPS260C
| 15kw 3phase
| 400-600kg/h
| 330/360kg
| 120*52*105cm
|
TOPS300B
| 22kw 3phase
| 600-800kg/h
| 410/450kg
| 127*52*107cm
|
TOPS300C
| 22kw 3phase
| 600-800kg/h
| 410/450kg
| 127*52*107cm
|
TOPS360C
| 22kw 3phase
| 700-900kg/h
| 470/500kg
| 134*58*110cm
|
TOPS400C
| 30kw 3phase
| 900-1200kg/h
| 630/660kg
| 145*62*115cm
|

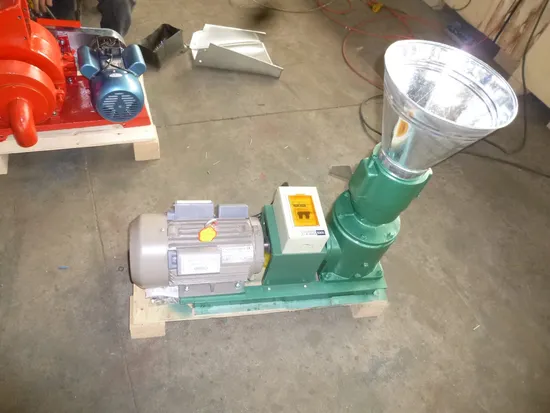

Main Features 1.This machine is flat die pellet press driven by 2.2kw, 220v, single phase electrical motor.
2. It can not only press feed pellets, but also press wood sawdust pellets.
3. Moisture content of the raw materials required: 12%-20%.
4. Feed Capacity: 40-60kg/h, Saw Dust Capacity: 10-30kg/h.
