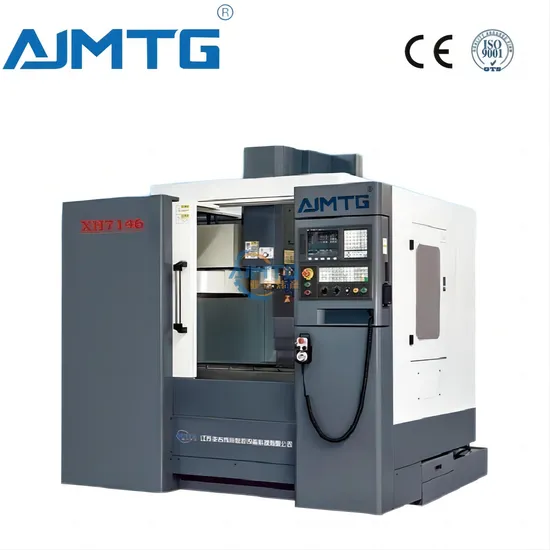

Taiwan 3 Year Warranty CNC Vertical Machining Center

Product Description

Nantong AJ Industry Limited offers the VMC855(H), VMC1060(H), VMC1160 3/4/5-axis Horizontal Metal Cutting Mini Vertical Drilling CNC Milling Machine. Explore our top-quality CNC Vertical Machining Centers for sale.
Nantong AJ Industry Limited offers the Taiwan 3 Year Warranty CNC Vertical Machining Center, a top-quality VMC CNC milling machine. This reliable 3/4/5 axis VMC CNC milling machine provides high precision cutting with advanced technology. Trust AJMTG for customizable, durable, and efficient CNC machinery.

Machining range	X axis travel	800mm
	Y axis travel	500mm
	Z axis travel	500mm
	Spindle nose to worktable	150-650mm
	Spindle to column guide	550mm
Worktable	Worktable size	1000x500mm
	T slot	18X5X90mm
	Weight load	500kgs
Spindle specification	Spindle	8000rpm belt drive Japan make
	Spindle motor	7.5kw
	Spindle taper	BT40(Ø140)
Feed system	G00 fast feed	48/48/36m/min
	G01 cutting feed	1-10000mm/min
	Servo motor	2*2*3kw
Tool system	Capacity	24 tools arm type Taiwan make
Main parts		Make
Ball screw		Taiwan C3 grade diameter 40mm, pitch 12/16mm
Linear guide		Taiwan HIWIN or Germany 35mm pin roller type
Spindle		Taiwan diameter 140mm , 8000 rpm
Tool magazine		Taiwan BT40-24 tools arm type
Bearing for 3 axis		Germany or Japan Nachi, Screw Angle Support Bearing 30X62

Export Certificate
Company Name: Nantong AJ Industry Limited
Product Name: Taiwan 3 Year Warranty CNC Vertical Machining Center
Keywords: Top Quality VMC CNC Milling Machine, Reliable 3/4/5 Axis VMC CNC Milling, High Precision CNC Cutting Machine, Advanced Machine Tool Equipment, Industrial Machinery Supplier
Description: High-quality CNC Vertical Machining Center with a 3-year warranty, offering precision and efficiency for industrial applications. Customizable and durable, this machine ensures top performance.

---
