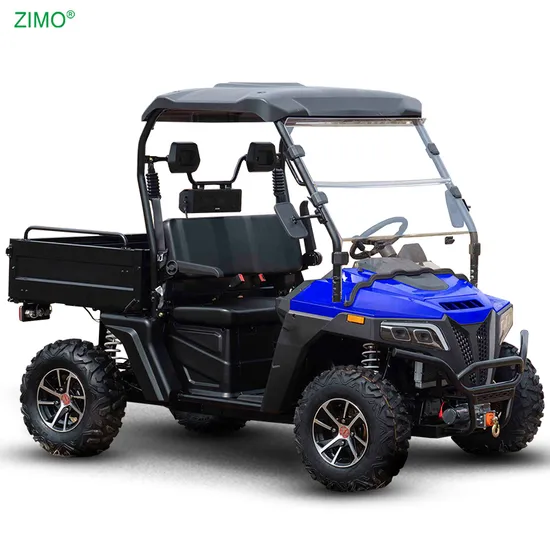

New Side by Side 2 Seater Off Road Farm Gas UTV450
ZIMO UTV450 is a new-designed utility vehicle which is safer and faster than others. Unique stylish vehicle design, special safe
structural design make driving experience and shipping work more efficient and safer.With reverse as standard,engines technology
is mature and reliable, parts are readily available everywhere. Equipped with more spacious seats, the driver and passenger can
have a comfortable and pleasant driving experience.
| SPECIFICATION | UTV450 | UTV450X |
| Length × Width ×Height | 2620×1440×1930mm | 3300×1440×1980mm |
| Wheelbase | 1840mm | 2495mm |
| Minimum Ground Clearance | 235mm | 230mm |
| Seat High | 830mm | 830mm |
| Weight With Full Equipments | 515kg | 595kg |
| Rear Cargo Box Load Capacity | 100kg | 100kg |
| Single Driver Top Speed | 65km/h | 65km/h |
| Fuel Tank capacity | 19L | 19L |
| Front / Rear Brake Type | Hydraulic Disc Brake | Hydraulic Disc Brake |
| Parking Type | Hand Brake | Hand Brake |
| Drive Mode | 4WD, Front and Rear Differential (Rear with Lock) |
| Control Way | Steering Wheel | Steering Wheel (EPS available as option) |
| Front / Rear Suspension Type | McPherson / Dual A-ARM Independent Suspension |
| Dump Bed Inside Size | 930×1270×380mm Dump 35° |
| Tire Type | Front AT25×8-12 / Rear AT25×10-12 |
| Multifunction Rear Seat | Folding Golf Seat / Cargo Tray |
| Engine Type | Single cylinder, four stroke, water cool, overhead |
| Cylinder Volume | 391ml | 391ml |
| Compression Ratio | 10:01 | 10:01 |
| Fuel System | Electronic Fuel Injection | Electronic Fuel Injection |
| Ignition Way | Electric Start | Electric Start |
| Transmission Way | CVT transmission, Belt | CVT transmission, Belt |
| Max kW/(RPM) | 20kW/ 6500-7000 r/min | 20kW/ 6500-7000 r/min |
| Max N.m/(RPM) | 30N.m/5000 r/min | 30N.m/5000 r/min |
| Lubrication Oil | SAE 15W-40 | SAE 15W-40 |
| Container Loading | 8 pieces/20'GP, 16 pieces/40'HQ | 4 pieces/20'GP, 12 pieces/40'HQ |
